دیتاشیت GBU4J

GBU4A - GBU4M

مشخصات دیتاشیت

نام دیتاشیت GBU4A - GBU4M
حجم فایل 207.941 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت GBU4A - GBU4M

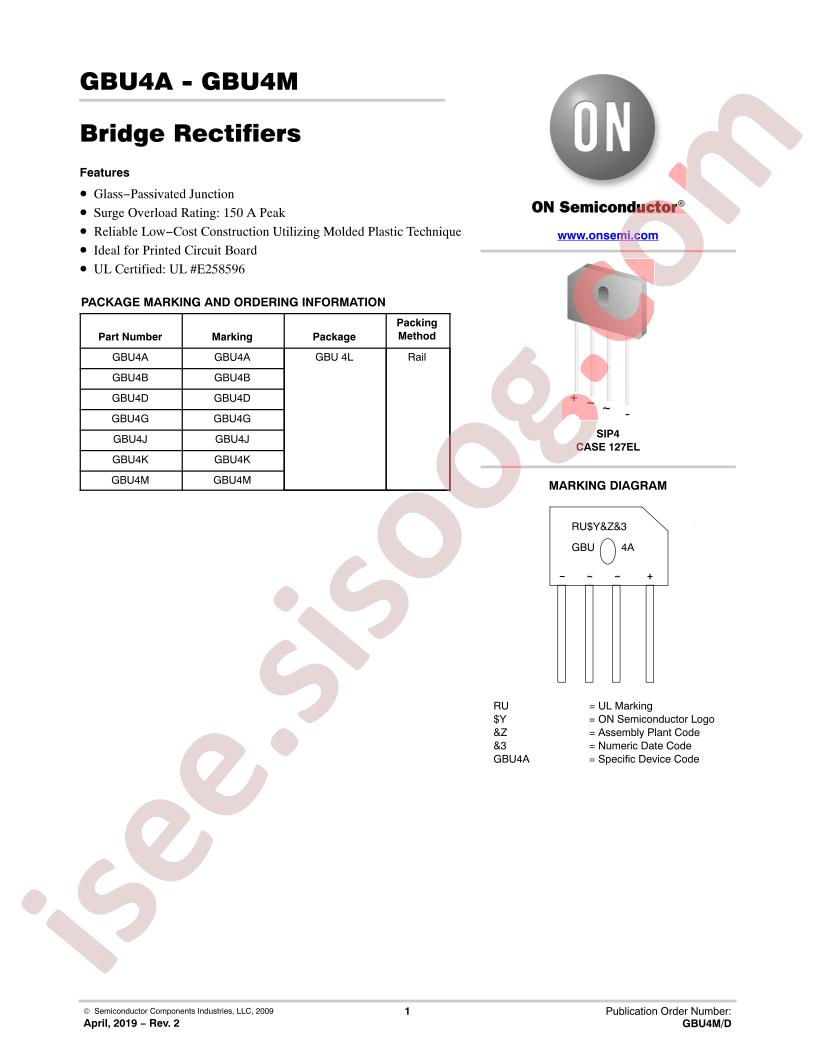

GBU4A - GBU4M Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Bridge Rectifiers

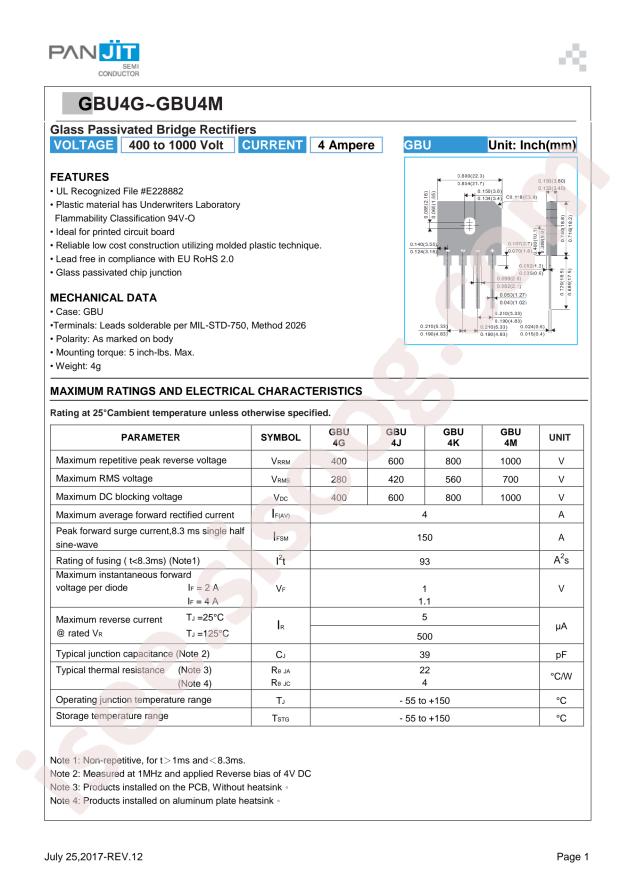

  • Datasheet: PANJIT International GBU4J
  • Reverse Voltage (Vr): 600V
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Forward Voltage (Vf@If): 1.1V@4A
  • Peak Forward Surge Current: 150A
  • Reverse Leakage Current (Ir): 5uA@600V
  • Average Rectified Current (Io): 4A
  • Package: GBU
  • Manufacturer: PANJIT International
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Diode Type: Single Phase
  • Technology: Standard
  • Voltage - Peak Reverse (Max): 600V
  • Current - Average Rectified (Io): 4A
  • Voltage - Forward (Vf) (Max) @ If: 1V @ 4A
  • Current - Reverse Leakage @ Vr: 5µA @ 600V
  • Mounting Type: Through Hole
  • Package / Case: 4-SIP, GBU
  • Supplier Device Package: GBU
  • Base Part Number: GBU4
  • detail: Bridge Rectifier Single Phase Standard 600V Through Hole GBU
