دیتاشیت BAT60JFILM

BAT60J

مشخصات دیتاشیت

نام دیتاشیت BAT60J
حجم فایل 236.843 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت BAT60J

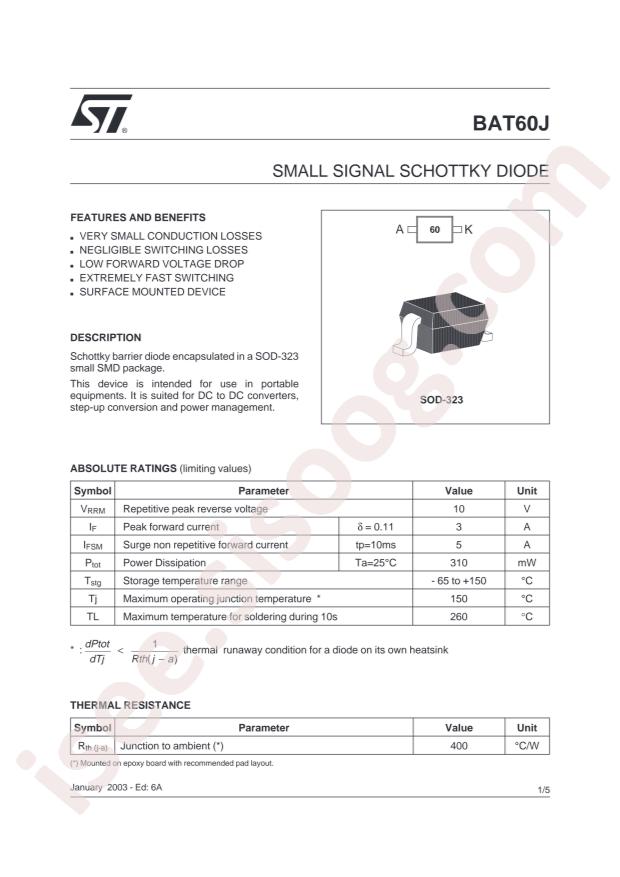

BAT60J Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: STMicroelectronics BAT60JFILM
  • Reverse Voltage (Vr): 10V
  • Forward Voltage (Vf@If): 580mV@1A
  • Reverse Leakage Current (Ir): 6uA@10V
  • Average Rectified Current (Io): 3A
  • Package: SOD-323
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 10V
  • Current - Average Rectified (Io): 3A (DC)
  • Voltage - Forward (Vf) (Max) @ If: 580mV @ 1A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 6µA @ 10V
  • Capacitance @ Vr, F: -
  • Mounting Type: Surface Mount
  • Package / Case: SC-76, SOD-323
  • Supplier Device Package: SOD-323
  • Operating Temperature - Junction: 150°C (Max)
  • Base Part Number: BAT60
  • detail: Diode Schottky 10V 3A (DC) Surface Mount SOD-323
