دیتاشیت HSMF-C165

مشخصات دیتاشیت

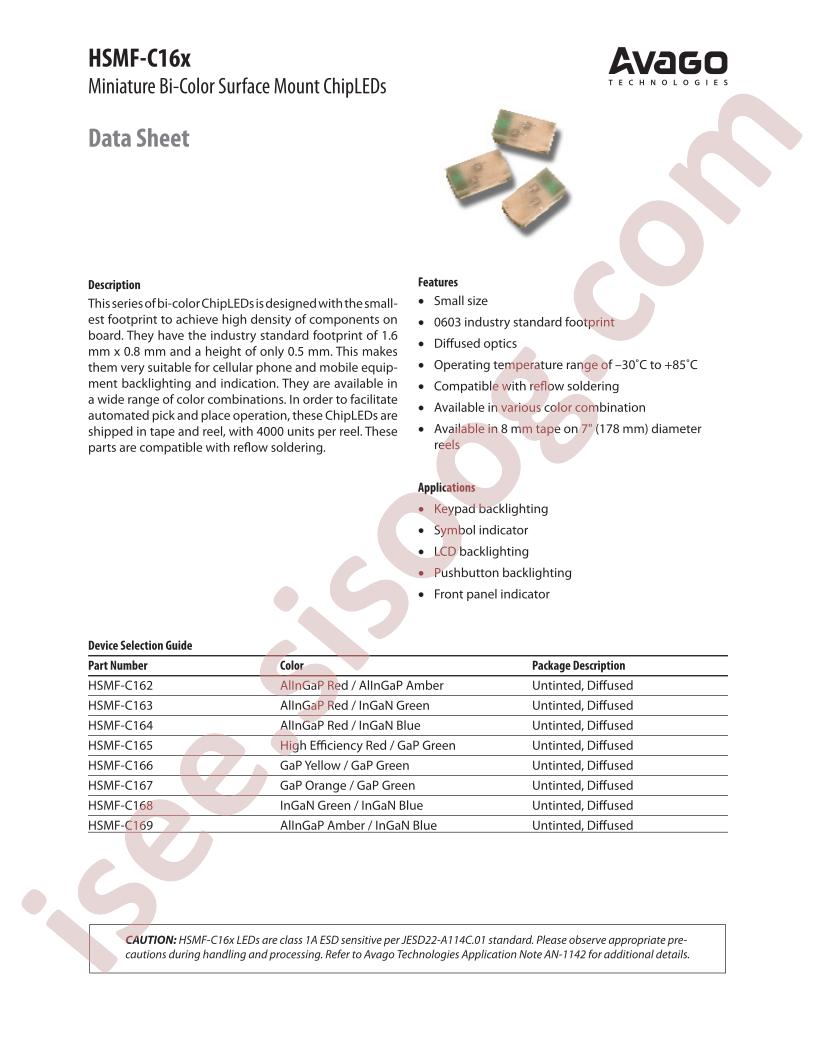

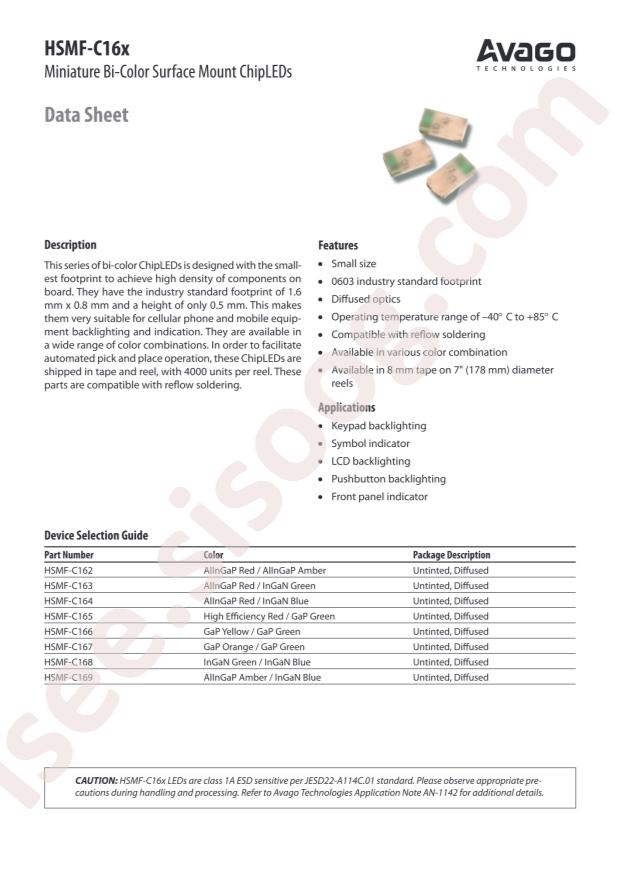

دانلود دیتاشیت HSMF-C165	HSMF-C165 Datasheet

RoHS: true
Category: Optocoupler/LED/Digital Tube/Photoelectric Device/Light Emitting Diodes (LED)
Datasheet: Broadcom/AVAGO HSMF-C165
Lens Color: White
Emitted Color: Red, General Green/Yellow-Green
Viewing Angle: 120°
Mounting Sytle: Positive post
Forward Current: 20mA
Peak Wavelength: 570nm;636nm
Color Temperature: -
Power Dissipation: 52mW
Luminous Intensity: 15mcd;10mcd
Diode Configuration: -
Dominant Wavelength: 572nm;621nm
Forward Voltage (VF): 2.2V;1.95V
Operating Temperature: -40°C~+85°C
Package: 0603
Manufacturer: Broadcom/AVAGO
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Color: Green, Red
Configuration: Independent
Lens Transparency: Diffused
Millicandela Rating: 15mcd Green, 10mcd Red
Lens Style: Rectangle with Flat Top
Lens Size: 1.60mm x 0.80mm
Voltage - Forward (Vf) (Typ): 2.2V Green, 1.95V Red
Current - Test: 20mA Green, 20mA Red
Mounting Type: Surface Mount
Wavelength - Dominant: 572nm Green, 621nm Red
Wavelength - Peak: 570nm Green, 636nm Red
Features: -
Package / Case: 0603 (1608 Metric)
Supplier Device Package: 0603
Size / Dimension: 1.60mm L x 0.80mm W
Height (Max): 0.50mm
Base Part Number: HSMF-C16
detail: Green, Red 572nm Green, 621nm Red LED Indication - Discrete 2.2V Green, 1.95V Red 0603 (1608 Metric)
