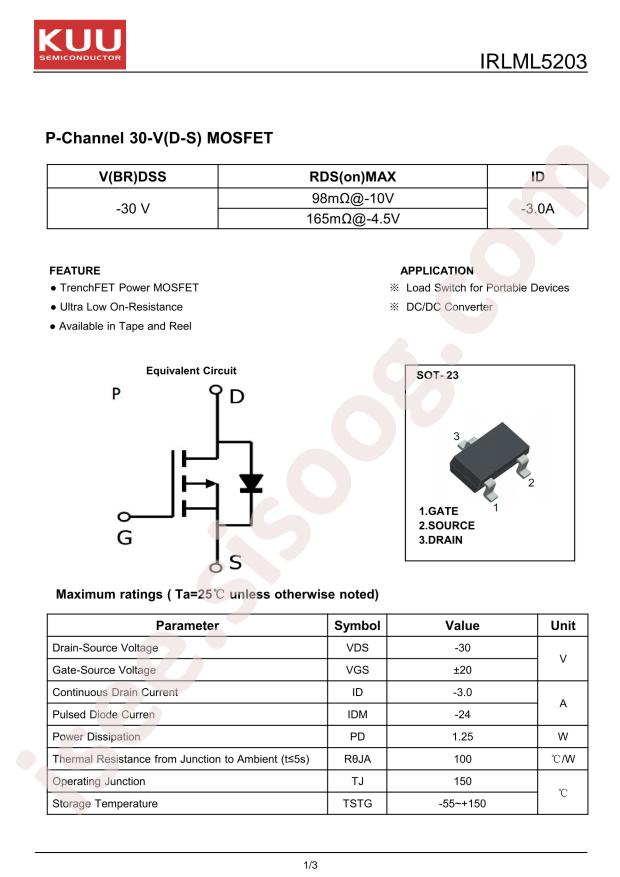

دیتاشیت IRLML5203
مشخصات دیتاشیت
| نام دیتاشیت |
IRLML5203
|
| حجم فایل |
77.337
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
KUU IRLML5203
-
Operating Temperature:
+150°C@(Tj)
-
Power Dissipation (Pd):
1.25W
-
Total Gate Charge (Qg@Vgs):
9.5nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
510pF@15V
-
Continuous Drain Current (Id):
3A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
43pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
98mΩ@10V,3A
-
Package:
SOT-23
-
Manufacturer:
KUU
