دیتاشیت LP38693MP-ADJ/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LP38691/93-ADJ(Q1) |
|---|---|
| حجم فایل | 1871.509 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 27 |
دانلود دیتاشیت LP38691/93-ADJ(Q1) |

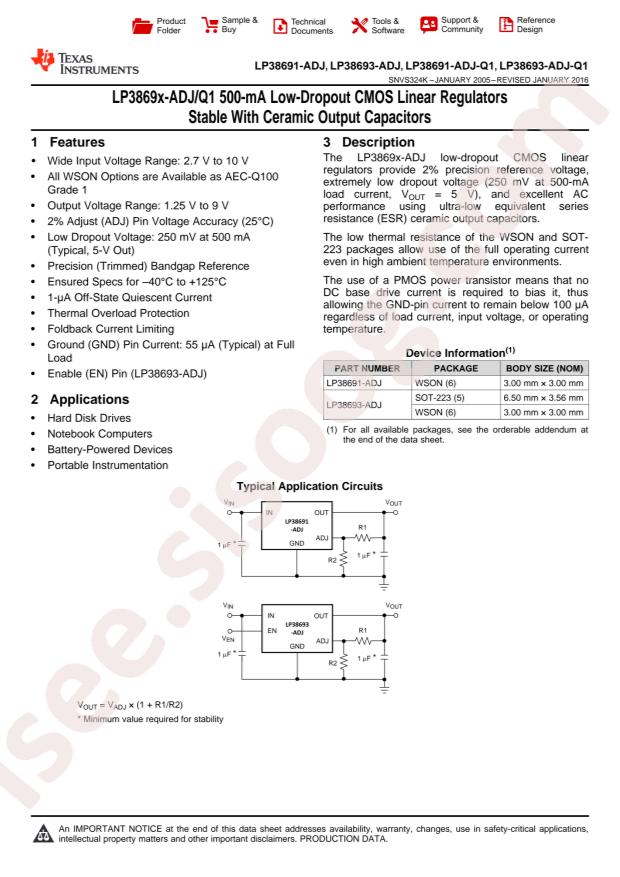

LP38691/93-ADJ(Q1) Datasheet |
|---|
مشخصات
- RoHS: true
- Feature: Thermal Protection
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LP38693MP-ADJ/NOPB
- Output Type: Adjustable
- Output Current: 500mA
- Output Voltage: 1.25V~9V
- Dropout Voltage: -
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 10V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 55uA
- Power Supply Rejection Ratio (PSRR): 65dB@(120Hz)
- Package: SOT-223-5
- Manufacturer: Texas Instruments
- Control Features: Enable
- Base Part Number: LP38693
- Package / Case: TO-261-5, TO-261AB
- Current - Supply (Max): 100µA
- Part Status: Obsolete
- Current - Output: 500mA
- PSRR: 55dB (120Hz)
- Series: -
- Voltage - Output (Min/Fixed): 1.25V
- Mounting Type: Surface Mount
- Number of Regulators: 1
- Current - Quiescent (Iq): 55µA
- Output Configuration: Positive
- Voltage Dropout (Max): -
- Supplier Device Package: SOT-223-5
- Protection Features: Over Temperature
- Voltage - Input (Max): 10V
- Packaging: Cut Tape (CT)
- Voltage - Output (Max): 9V
- detail: Linear Voltage Regulator IC 1 Output 500mA SOT-223-5
