دیتاشیت LM2575HVT-5.0
مشخصات دیتاشیت
| نام دیتاشیت | LM1575,2575(HV) |
|---|---|
| حجم فایل | 6176.633 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 44 |
دانلود دیتاشیت LM1575,2575(HV) |

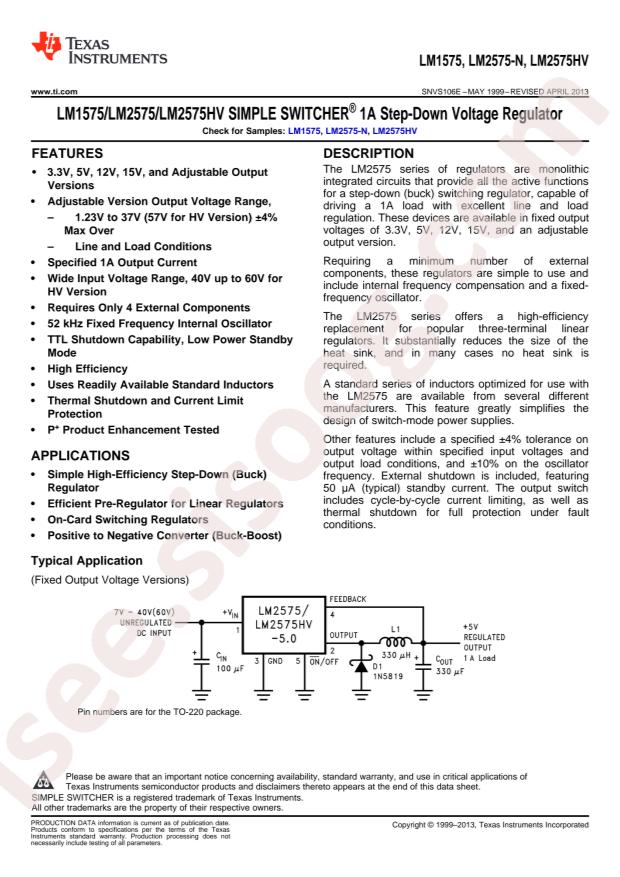

LM1575,2575(HV) Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Datasheet: HGSEMI LM2575HVT-5.0
- Package: TO-220-5
- Manufacturer: HGSEMI
- Function: Step-down type
- Topology: Step-down
- Output Type: Fixed
- Input Voltage: 4V~60V
- Output Voltage: 5V
- Number of Outputs: 1
- Switching Frequency: 52kHz
- Output Current (Max): 1A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Current - Output: 1A
- Voltage - Input (Max): 60V
- Frequency - Switching: 52kHz
- Part Status: Not For New Designs
- Base Part Number: LM2575
- Voltage - Output (Min/Fixed): 5V
- Package / Case: TO-220-5
- Series: SIMPLE SWITCHER®
- Packaging: Tube
- Synchronous Rectifier: No
- Output Configuration: Positive
- Voltage - Output (Max): -
- Mounting Type: Through Hole
- Supplier Device Package: TO-220-5
- Voltage - Input (Min): 4V
- detail: Buck Switching Regulator IC Positive Fixed 5V 1 Output 1A TO-220-5
