دیتاشیت MC33153DR2G

MC33153

مشخصات دیتاشیت

نام دیتاشیت MC33153
حجم فایل 167.221 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

دانلود دیتاشیت MC33153

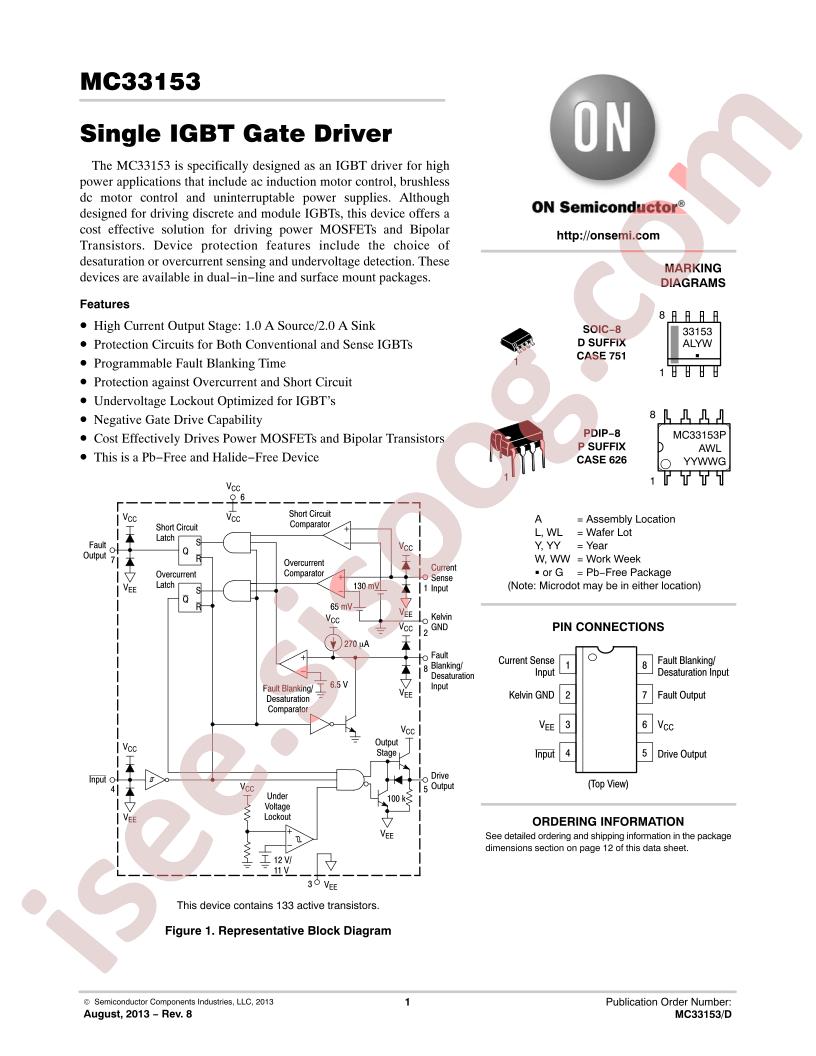

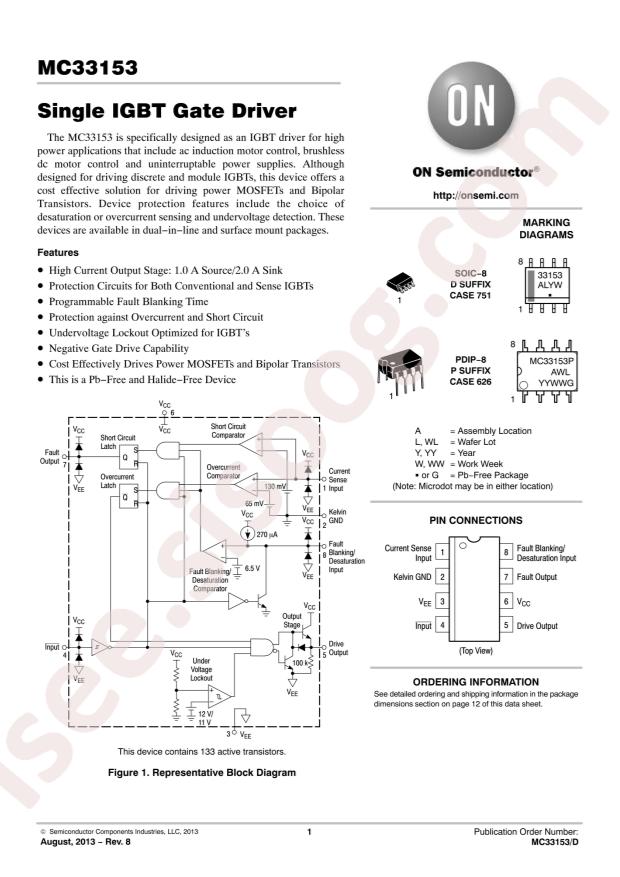

MC33153 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: onsemi MC33153DR2G
  • Fall Time: 17ns
  • Load Type: IGBT;MOSFET
  • Rise Time: 17ns
  • Supply Voltage: 11V~20V
  • Number of Drivers: 1
  • Driven Configuration: Low Side
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Peak Output Current(sink): 2A
  • Peak Output Current(source): 1A
  • Package: SOIC-8
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Channel Type: Single
  • Gate Type: IGBT, N-Channel MOSFET
  • Voltage - Supply: 11V ~ 20V
  • Logic Voltage - VIL, VIH: 1.2V, 3.2V
  • Current - Peak Output (Source, Sink): 1A, 2A
  • Input Type: Inverting
  • Rise / Fall Time (Typ): 17ns, 17ns
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: MC33153
  • detail: Low-Side Gate Driver IC Inverting 8-SOIC
