دیتاشیت MCP3004-I/SL

MCP3004, 3008

مشخصات دیتاشیت

نام دیتاشیت MCP3004, 3008
حجم فایل 763.993 کیلوبایت
نوع فایل pdf
تعداد صفحات 40

دانلود دیتاشیت MCP3004, 3008

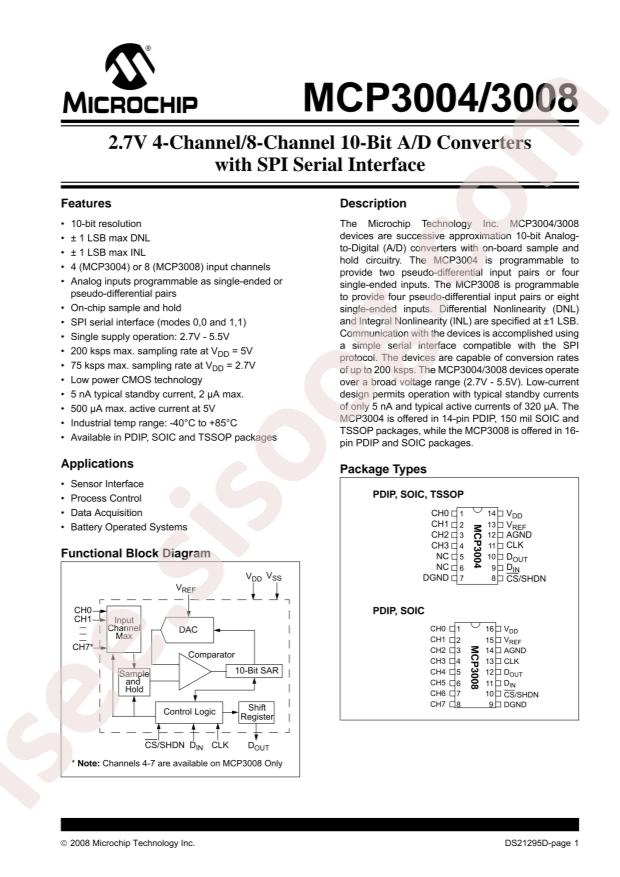

MCP3004, 3008 Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 10
  • Sampling Rate (Per Second): 200k
  • Number of Inputs: 2, 4
  • Input Type: Pseudo-Differential, Single Ended
  • Data Interface: SPI
  • Configuration: MUX-S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External
  • Voltage - Supply, Analog: 2.7V ~ 5.5V
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • Features: -
  • Operating Temperature: -40°C ~ 85°C
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 14-SOIC
  • Mounting Type: Surface Mount
  • Base Part Number: MCP3004
  • detail: 10 Bit Analog to Digital Converter 2, 4 Input 1 SAR 14-SOIC
