دیتاشیت MC33151DR2G

MC33151, 34151

مشخصات دیتاشیت

نام دیتاشیت MC33151, 34151
حجم فایل 252.775 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

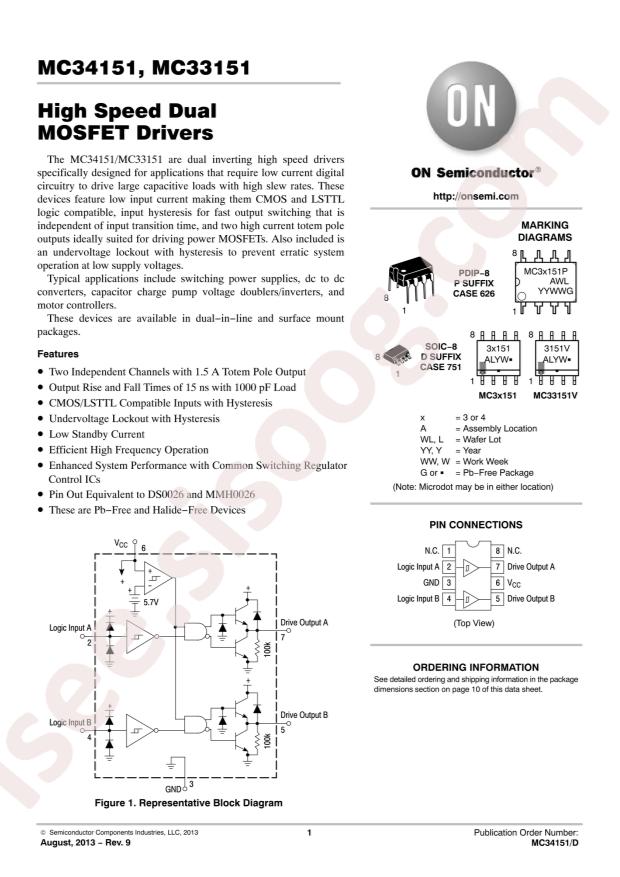

دانلود دیتاشیت MC33151, 34151

MC33151, 34151 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: onsemi MC33151DR2G
  • Fall Time: 32ns
  • Load Type: MOSFET
  • Rise Time: 31ns
  • Supply Voltage: 6.5V~18V
  • Number of Drivers: 2
  • Driven Configuration: Low Side
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Peak Output Current(sink): 1.5A
  • Peak Output Current(source): 1.5A
  • Package: SOP-8
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Channel Type: Independent
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 6.5V ~ 18V
  • Logic Voltage - VIL, VIH: 0.8V, 2.6V
  • Current - Peak Output (Source, Sink): 1.5A, 1.5A
  • Input Type: Inverting
  • Rise / Fall Time (Typ): 31ns, 32ns
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: MC33151
  • detail: Low-Side Gate Driver IC Inverting 8-SOIC
