دیتاشیت LM5106MMX/NOPB

LM5106 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LM5106 Datasheet
حجم فایل 1342.291 کیلوبایت
نوع فایل pdf
تعداد صفحات 28

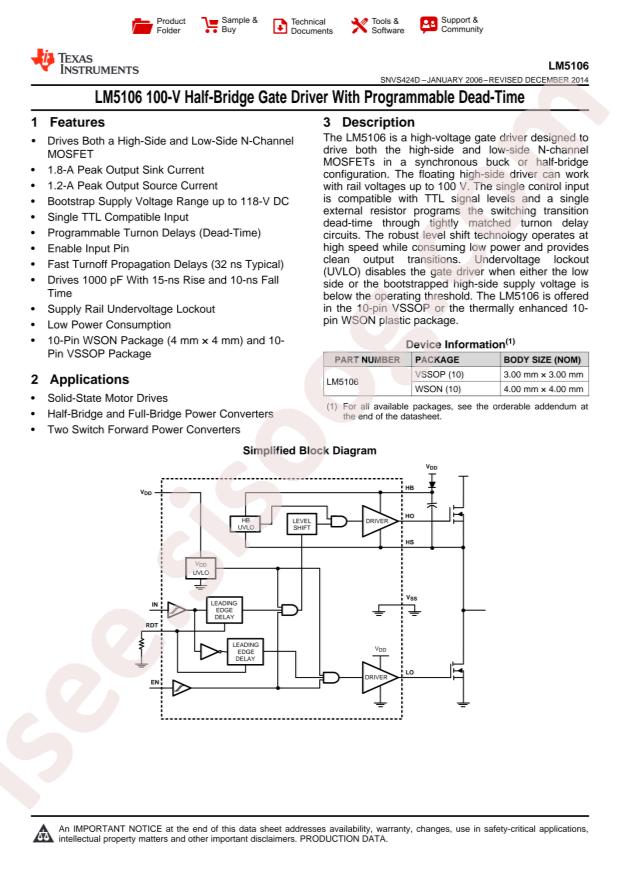

دانلود دیتاشیت LM5106 Datasheet

LM5106 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments LM5106MMX/NOPB
  • Package: MSOP-10
  • Manufacturer: Texas Instruments
  • Channel Type: Synchronous
  • Number of Drivers: 2
  • Current - Peak Output (Source, Sink): 1.2A, 1.8A
  • Base Part Number: LM5106
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
  • Logic Voltage - VIL, VIH: 0.8V, 2.2V
  • Supplier Device Package: 10-VSSOP
  • Rise / Fall Time (Typ): 15ns, 10ns
  • Part Status: Obsolete
  • Driven Configuration: Half-Bridge
  • Series: -
  • Input Type: Non-Inverting
  • Mounting Type: Surface Mount
  • Packaging: Cut Tape (CT)
  • Voltage - Supply: 8V ~ 14V
  • Gate Type: N-Channel MOSFET
  • High Side Voltage - Max (Bootstrap): 118V
  • detail: Half-Bridge Gate Driver IC Non-Inverting 10-VSSOP
