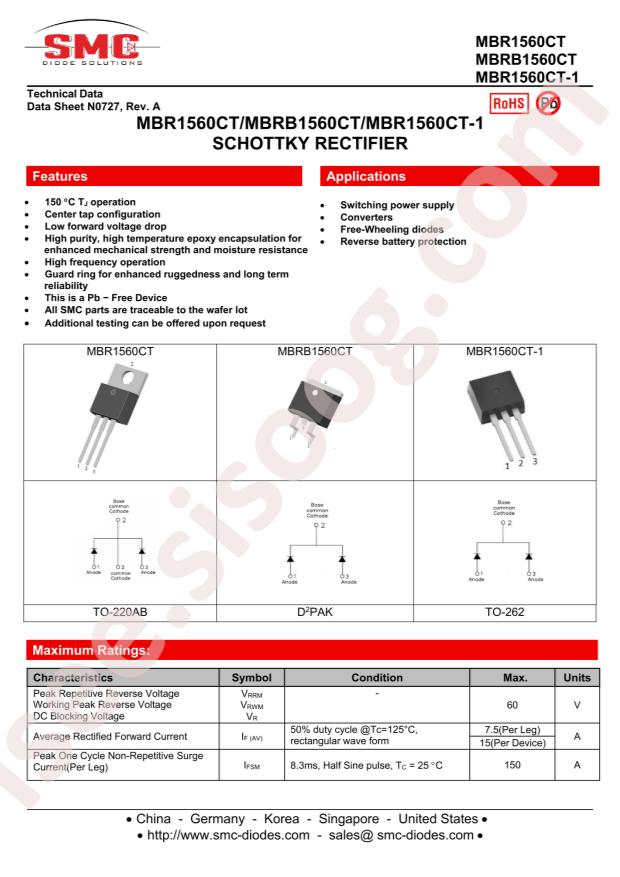

دیتاشیت MBR1560CT
مشخصات دیتاشیت
| نام دیتاشیت |
MBR1535-1560CT
|
| حجم فایل |
495.484
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
SMC(Sangdest Microelectronicstronic (Nanjing)) MBR1560CT
-
Diode Configuration:
Dual Common Cathode
-
Reverse Voltage (Vr):
60V
-
Forward Voltage (Vf@If):
850mV@15A
-
Reverse Leakage Current (Ir):
20uA@60V
-
Average Rectified Current (Io):
7.5A
-
Package:
TO-220
-
Manufacturer:
SMC(Sangdest Microelectronicstronic (Nanjing))
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
60V
-
Current - Average Rectified (Io) (per Diode):
15A
-
Voltage - Forward (Vf) (Max) @ If:
750mV @ 7.5A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
1mA @ 60V
-
Operating Temperature - Junction:
-65°C ~ 150°C
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220-3
-
Base Part Number:
MBR1560
-
detail:
Diode Array 1 Pair Common Cathode Schottky 60V 15A Through Hole TO-220-3
