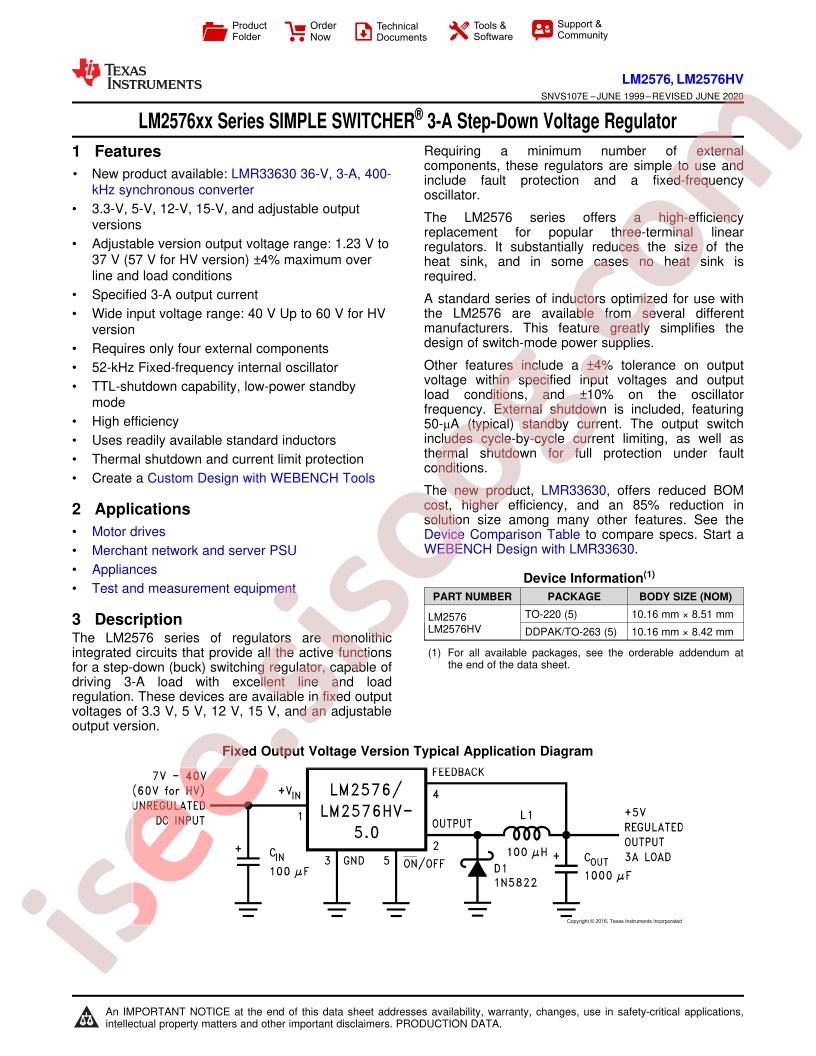

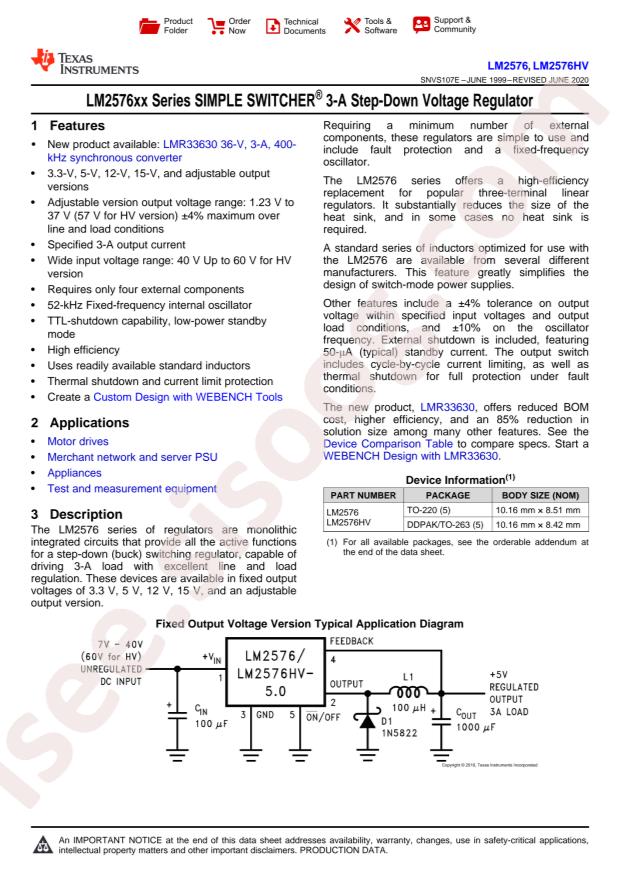

LM2576HVT-ADJ/NOPB 数据手册
其他文档
LM2576(HV) 44 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Texas Instruments LM2576HVT-ADJ/NOPB
- Output Type: Adjustable
- Input Voltage: 4V~60V
- Output Voltage: 1.23V~57V
- Number of Outputs: 1
- Switching Frequency: 52kHz
- Output Current (Max): 3A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: TO-220-5
- Manufacturer: Texas Instruments
- Part Status: Active
- Current - Output: 3A
- Package / Case: TO-220-5
- Base Part Number: LM2576
- Synchronous Rectifier: No
- Series: SIMPLE SWITCHER®
- Voltage - Input (Min): 4V
- Voltage - Output (Min/Fixed): 1.23V
- Voltage - Output (Max): 57V
- Mounting Type: Through Hole
- Frequency - Switching: 52kHz
- Packaging: Tube
- Output Configuration: Positive
- Supplier Device Package: TO-220-5
- Voltage - Input (Max): 60V
- detail: Buck Switching Regulator IC Positive Adjustable 1.23V 1 Output 3A TO-220-5
