دیتاشیت MC74HC573ADWR2G

MC74HC573A

مشخصات دیتاشیت

نام دیتاشیت MC74HC573A
حجم فایل 91.606 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

دانلود دیتاشیت MC74HC573A

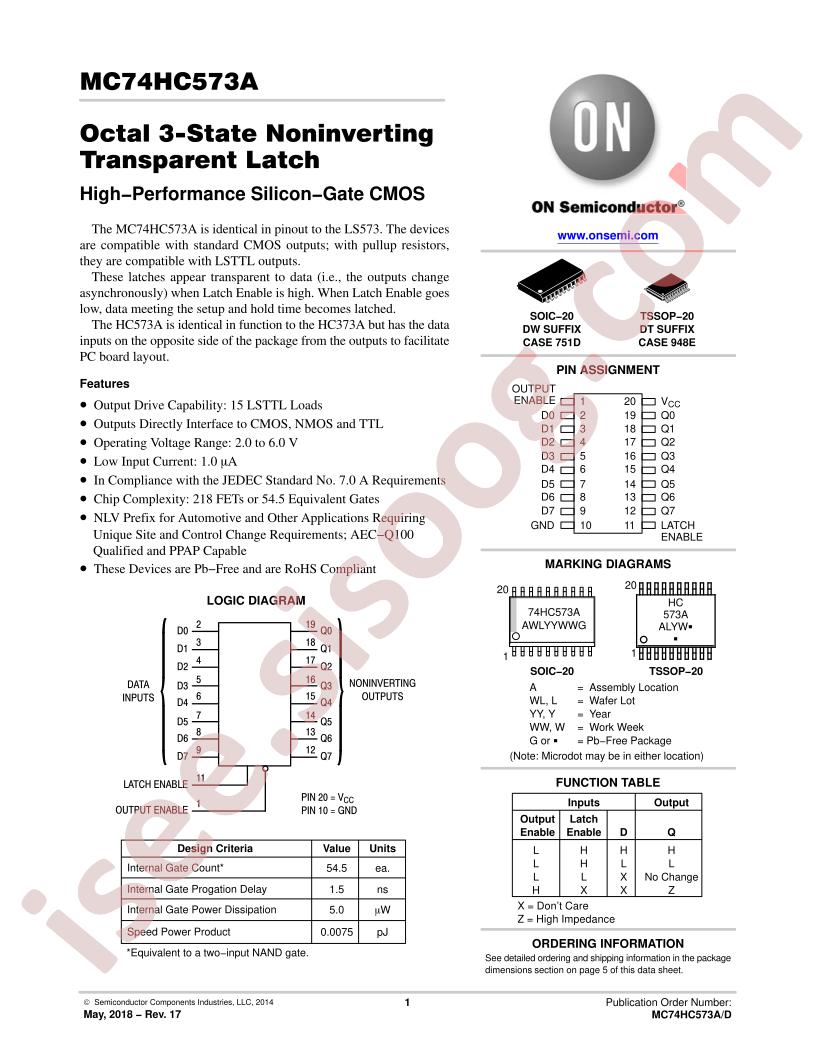

MC74HC573A Datasheet

مشخصات

  • RoHS: true
  • Series: 74HC
  • Category: Logic ICs/Latches
  • Datasheet: onsemi MC74HC573ADWR2G
  • Logic Type: D-Typelocking Latch
  • Output Type: Tri-State
  • Sink Current: 7.8mA
  • Source Current: 7.8mA
  • Supply Voltage: 2V~6V
  • Propagation Delay: 26ns
  • OperatingTemperature: -55°C~+125°C
  • Package: SOP-20-300mil
  • Manufacturer: onsemi
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Circuit: 8:8
  • Voltage - Supply: 2V ~ 6V
  • Independent Circuits: 1
  • Delay Time - Propagation: 26ns
  • Current - Output High, Low: 7.8mA, 7.8mA
  • Operating Temperature: -55°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 20-SOIC (0.295", 7.50mm Width)
  • Supplier Device Package: 20-SOIC
  • Base Part Number: MC74HC573
  • detail: D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-SOIC
