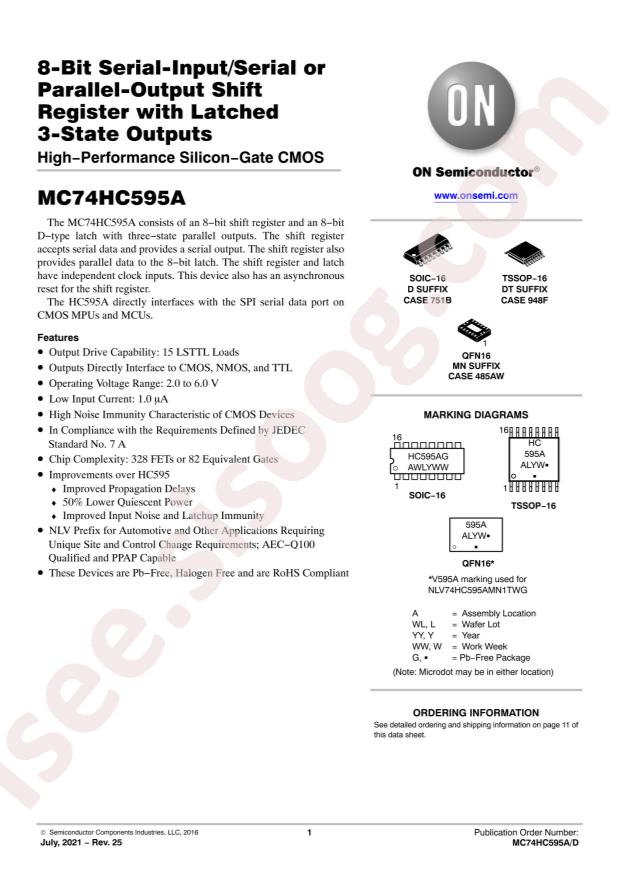

MC74HC595ADG Datasheet
Datasheet specifications
| Datasheet's name | MC74HC595ADG |
|---|---|
| File size | 78.072 KB |
| File type | |
| Number of pages | 15 |
Download Datasheet MC74HC595ADG |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- RoHS: true
- Series: 74HC
- Category: Logic ICs/Shifting Register
- Function: 串行至并行或串行
- Datasheet: onsemi MC74HC595ADG
- Output Type: Tri-State
- Supply Voltage: 2V~6V
- Number of Elements: 1
- Operating Temperature: -55°C~+125°C
- Number of Bits per Element: 8
- Package: SOP-16
- Manufacturer: onsemi
