دیتاشیت MM74HC14M
مشخصات دیتاشیت
| نام دیتاشیت |
MM74HC14
|
| حجم فایل |
417.924
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Series:
74HC
-
Category:
Logic ICs/Inverters
-
Datasheet:

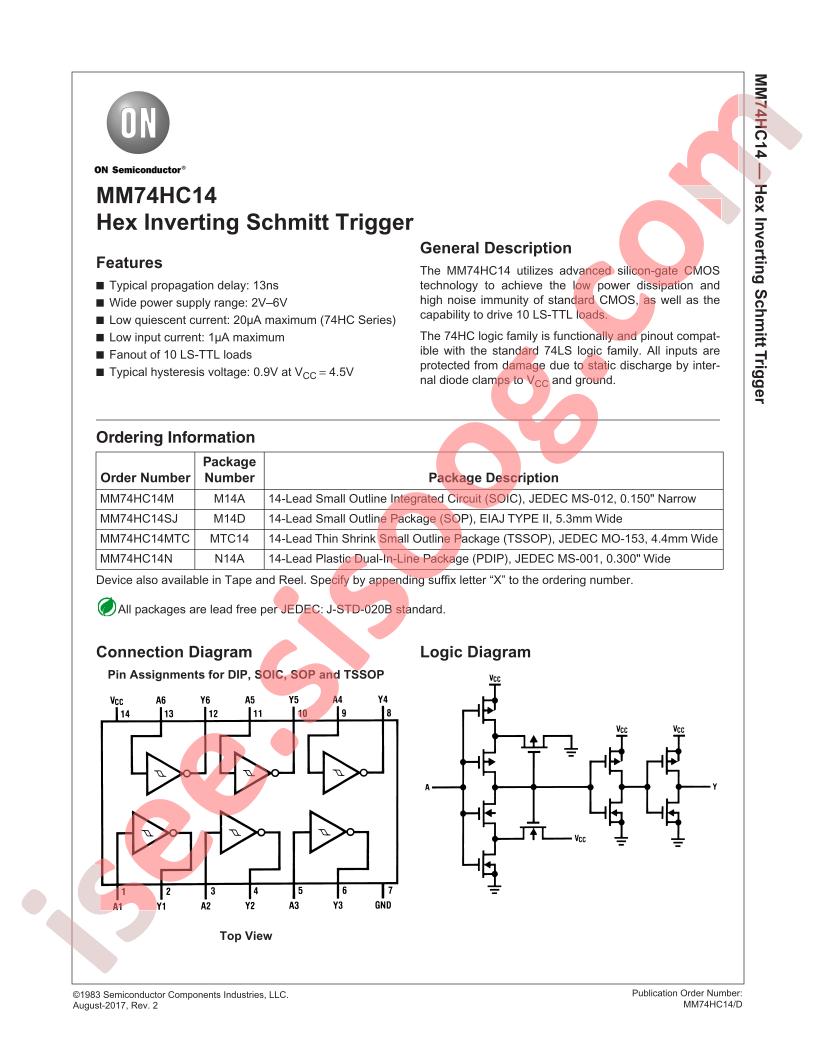

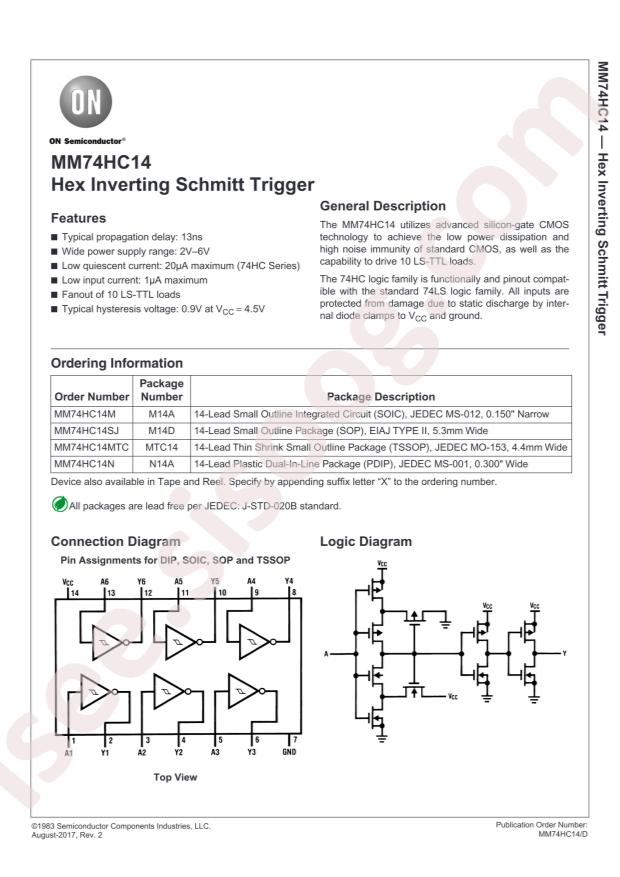

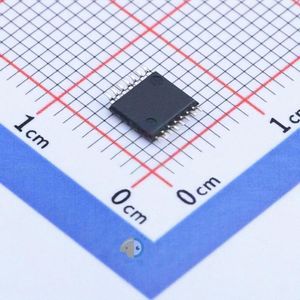

onsemi MM74HC14M
-
Input Type:
Schmitt Trigger
-
Sink Current:
5.2mA
-
Source Current:
5.2mA
-
Number of Inputs:
1
-
Number of Circuits:
6
-
Supply Current (Max):
2uA
-
Low level range (VIL):
0.3V~1.2V
-
Max Propagation Delay:
21ns@6V,50pF
-
Operating Temperature:
-55°C~+125°C
-
High level range (VIH):
1.5V~4.2V
-
Supply Voltage(Single):
2V~6V
-
Package:
SOP-14
-
Manufacturer:
onsemi
-
Packaging:
Tube
-
Part Status:
Active
-
Logic Type:
Inverter
-
Features:
Schmitt Trigger
-
Voltage - Supply:
2V ~ 6V
-
Current - Quiescent (Max):
2µA
-
Current - Output High, Low:
5.2mA, 5.2mA
-
Logic Level - Low:
0.3V ~ 1.2V
-
Logic Level - High:
1.5V ~ 4.2V
-
Max Propagation Delay @ V, Max CL:
21ns @ 6V, 50pF
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
14-SOIC
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Base Part Number:
MM74H
-
detail:
Inverter IC 6 Channel Schmitt Trigger 14-SOIC
