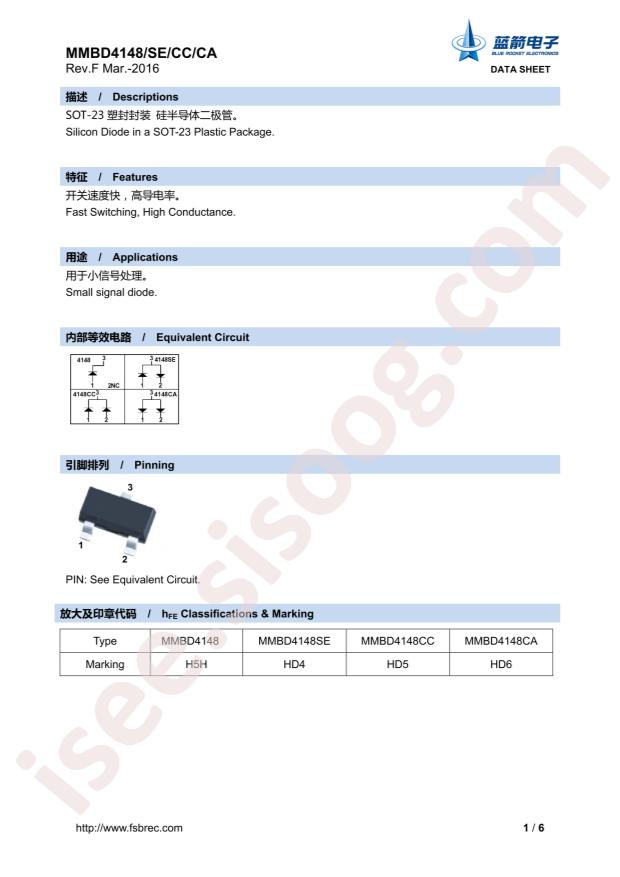

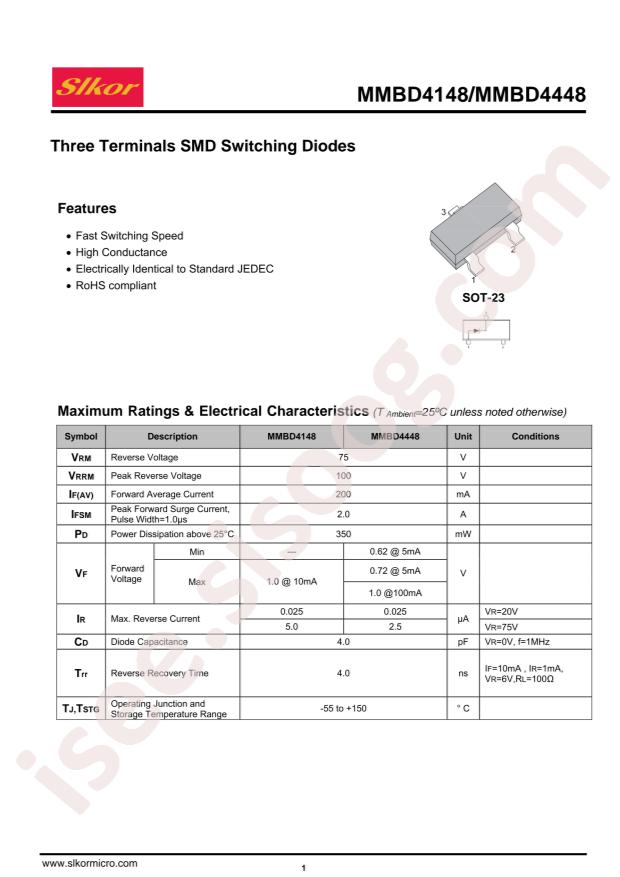

MMBD4148 数据手册
技术规格
- RoHS: true
- Category: Diodes/Switching Diode
- Datasheet: FMS(Formosa Microsemi) MMBD4148
- Power Dissipation: 350mW
- Diode Configuration: Single
- Reverse Voltage (Vr): 75V
- Operating Temperature: -55°C~+150°C@(Tj)
- Forward Voltage (Vf@If): 1.25V@150mA
- Reverse Leakage Current: 2.5uA@75V
- Reverse Recovery Time (trr): 4ns
- Average Rectified Current (Io): 150mA
- Package: SOT-23(TO-236)
- Manufacturer: FMS(Formosa Microsemi)
