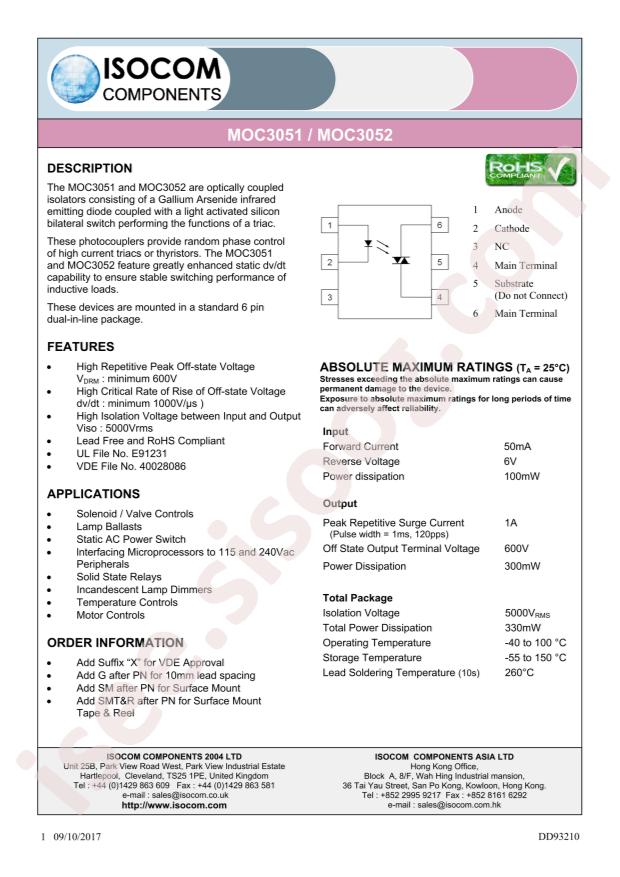

MOC3052SM دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MOC3052SM |
|---|---|
| حجم فایل | 90.366 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 9 |
دانلود دیتاشیت MOC3052SM |
دانلود دیتاشیت |
|---|
سایر مستندات
مشخصات فنی
- RoHS: true
- Category: Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Thyristor Signal Output
- SCR Type: Two-way thyristor
- Datasheet: Isocom Components MOC3052SM
- Forward Current: 50mA
- Forward Voltage: 1.2V
- Number of Outputs: 1
- Operating Temperature: -40°C~+100°C
- Zero Crossing Circuit: No
- Isolation Voltage(rms): 5000V
- Peak Off-state Voltage(Vdrm): 600V
- RMS On-State Current(It(rms)): -
- Package: SMD-6P
- Manufacturer: Isocom Components
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Type: Triac
- Number of Channels: 1
- Voltage - Isolation: 4170Vrms
- Voltage - Off State: 600V
- Static dV/dt (Min): 1kV/µs
- Current - LED Trigger (Ift) (Max): 10mA
- Current - Hold (Ih): 220µA (Typ)
- Turn On Time: -
- Voltage - Forward (Vf) (Typ): 1.18V
- Current - DC Forward (If) (Max): 60mA
- Mounting Type: Surface Mount
- Package / Case: 6-SMD, Gull Wing
- Supplier Device Package: 6-SMD
- Approval Agency: UR
- Base Part Number: MOC305
- detail: Optoisolator Triac Output 4170Vrms 1 Channel 6-SMD
