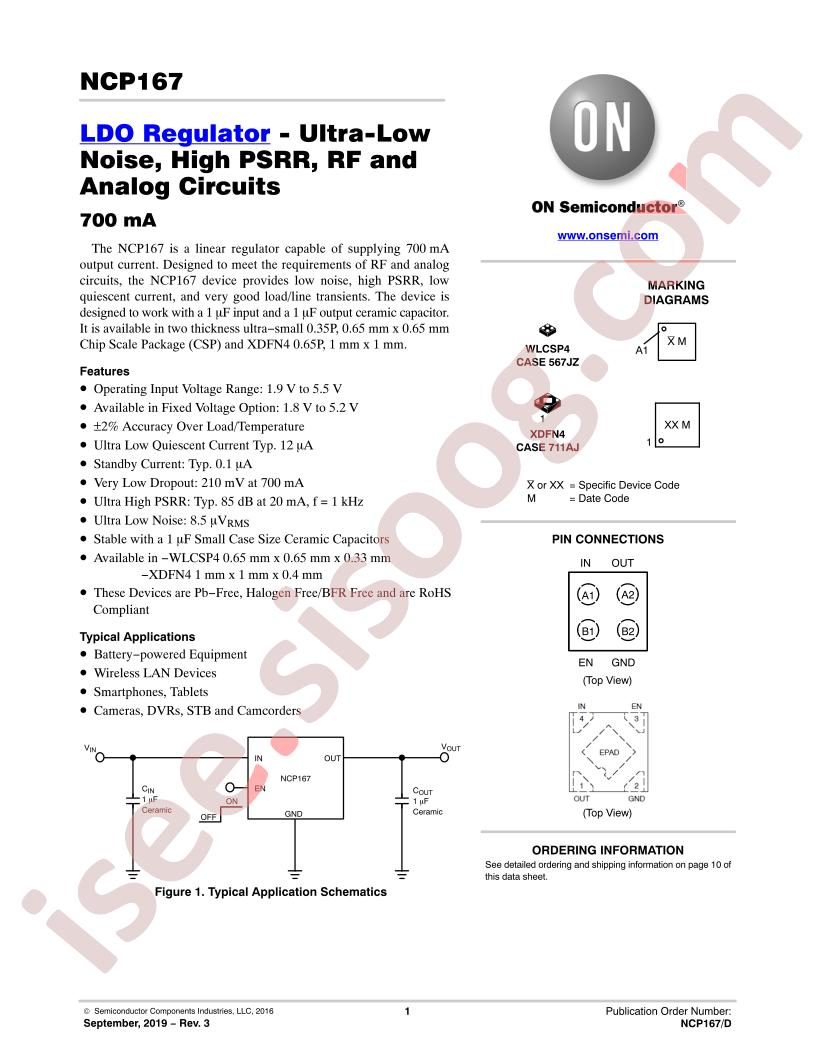

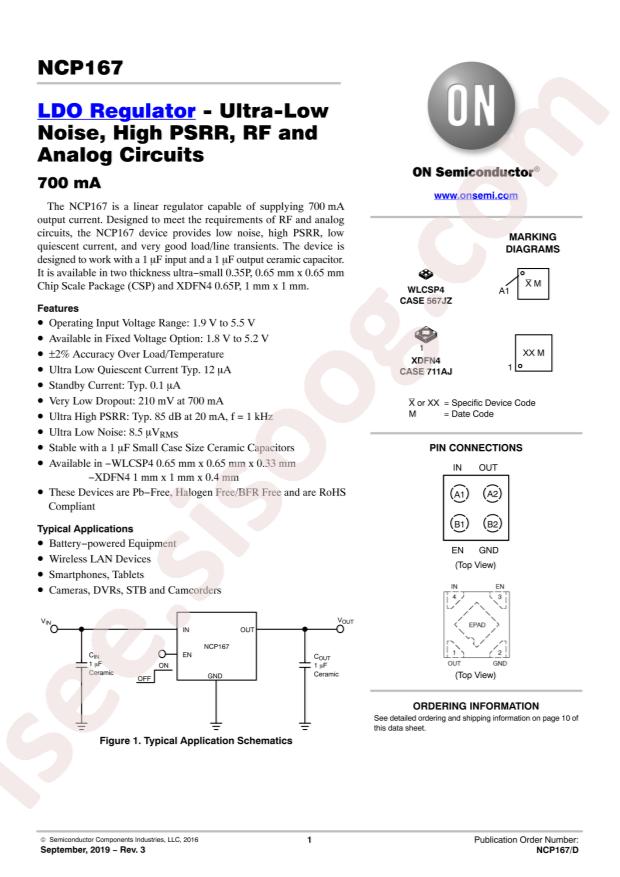

دیتاشیت NCP167BMX330TBG
مشخصات دیتاشیت
| نام دیتاشیت |
NCP167
|
| حجم فایل |
346.993
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
onsemi NCP167BMX330TBG
-
Output Type:
-
-
Package:
DFN-4(1x1)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
3.3V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.29V @ 700mA
-
Current - Output:
700mA
-
Current - Quiescent (Iq):
18µA
-
PSRR:
85dB ~ 63dB (100Hz ~ 100kHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature, Soft Start
-
Operating Temperature:
-40°C ~ 125°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
4-XDFN Exposed Pad
-
Supplier Device Package:
4-XDFN (1x1)
-
Base Part Number:
NCP167
-
detail:
Linear Voltage Regulator IC 1 Output 700mA 4-XDFN (1x1)
