دیتاشیت LM2904DT

LM2904(A)

مشخصات دیتاشیت

نام دیتاشیت LM2904(A)
حجم فایل 914.886 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت LM2904(A)

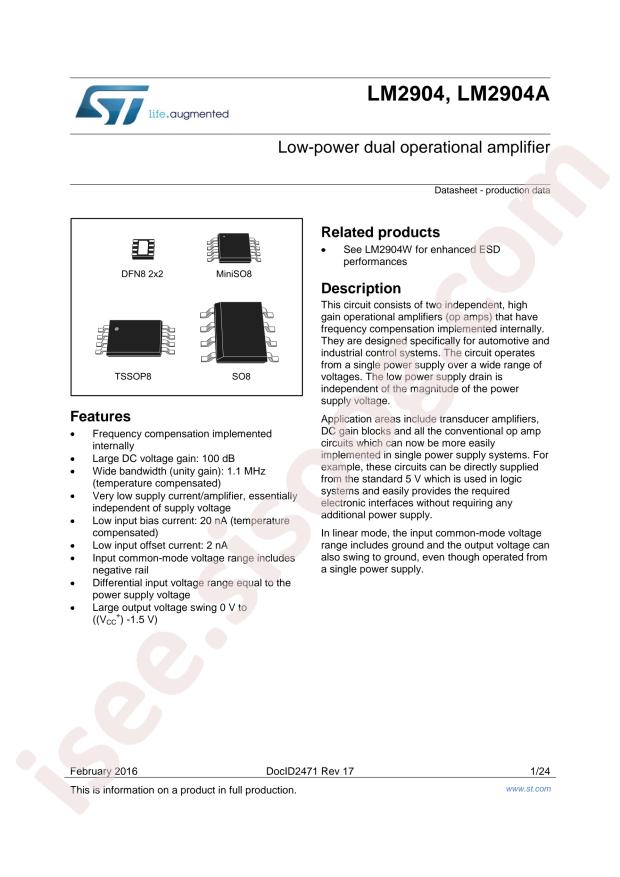

LM2904(A) Datasheet

مشخصات

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Operational Amplifier
  • Datasheet: STMicroelectronics LM2904DT
  • Rail to Rail: Single-Ended
  • -3db Bandwidth: -
  • Output Current: 30mA
  • Supply Current: 700uA
  • Number of Circuits: 2
  • Operating Temperature: -40°C~+125°C
  • Current - Input Bias(Ib): 20nA
  • Gain Bandwidth Product(GBP): 700kHz
  • Package: SOP-8
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Amplifier Type: General Purpose
  • Output Type: -
  • Slew Rate: 0.6V/µs
  • Gain Bandwidth Product: 1.1MHz
  • Current - Input Bias: 20nA
  • Voltage - Input Offset: 2mV
  • Current - Supply: 700µA
  • Current - Output / Channel: 40mA
  • Voltage - Supply, Single/Dual (±): 3V ~ 30V, ±1.5V ~ 15V
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SO
  • Base Part Number: LM2904
  • detail: General Purpose Amplifier 2 Circuit 8-SO
