دیتاشیت MMBD4148CA

MMBD4148(SE,CC,CA)

مشخصات دیتاشیت

نام دیتاشیت MMBD4148(SE,CC,CA)
حجم فایل 319.078 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

دانلود دیتاشیت MMBD4148(SE,CC,CA)

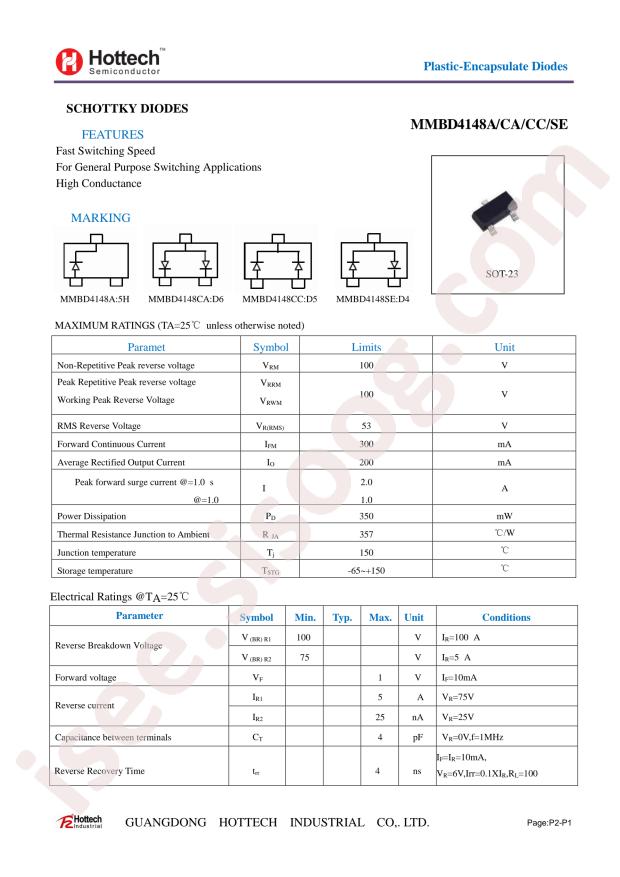

MMBD4148(SE,CC,CA) Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Switching Diode
  • Datasheet: CBI MMBD4148CA
  • Power Dissipation: 350mW
  • Diode Configuration: 1 Pair Common Anode
  • Reverse Voltage (Vr): 100V
  • Operating Temperature: +150°C@(Tj)
  • Forward Voltage (Vf@If): 1V@10mA
  • Reverse Leakage Current: 5uA@75V
  • Reverse Recovery Time (trr): 4ns
  • Average Rectified Current (Io): 200mA
  • Package: SOT-23(TO-236)
  • Manufacturer: CBI
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 100V
  • Current - Average Rectified (Io): 200mA
  • Voltage - Forward (Vf) (Max) @ If: 1V @ 10mA
  • Speed: Small Signal =< 200mA (Io), Any Speed
  • Current - Reverse Leakage @ Vr: 5µA @ 75V
  • Capacitance @ Vr, F: 4pF @ 0V, 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: SOT-23-3
  • Operating Temperature - Junction: 150°C (Max)
  • Base Part Number: MMBD41
  • detail: Diode Standard 100V 200mA Surface Mount SOT-23-3
