دیتاشیت MUR1620CTG
مشخصات دیتاشیت
| نام دیتاشیت | MUR1610(15,20,40,60)CT |
|---|---|
| حجم فایل | 87.439 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 7 |

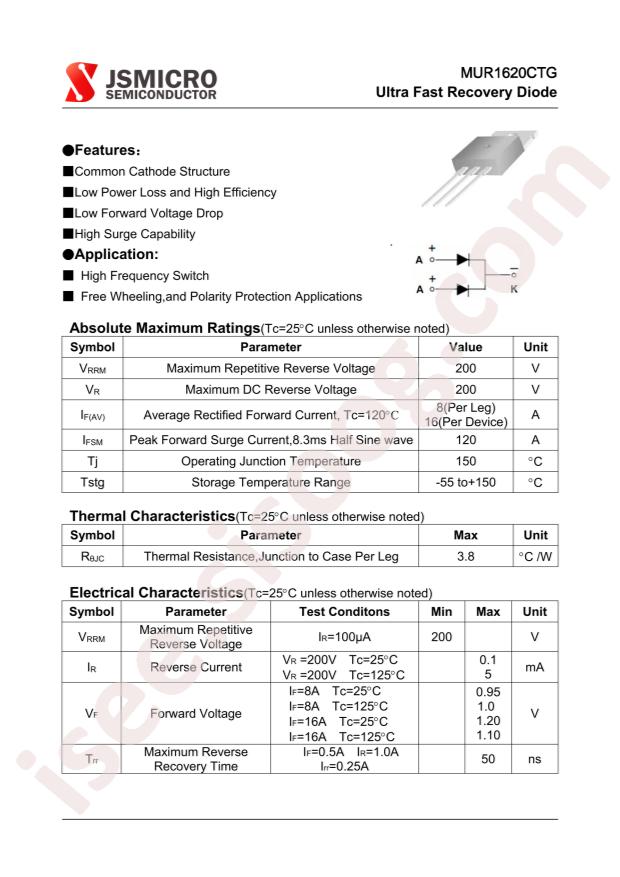

دانلود دیتاشیت MUR1610(15,20,40,60)CT |
MUR1610(15,20,40,60)CT Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet: onsemi MUR1620CTG
- Diode Configuration: Dual Common Cathode
- Reverse Voltage (Vr): 200V
- Operating Temperature: -65°C~+175°C@(Tj)
- Forward Voltage (Vf@If): 975mV@8A
- Reverse Leakage Current: 5uA@200V
- Reverse Recovery Time (trr): 35ns
- Average Rectified Current (Io): 8A
- Package: TO-220
- Manufacturer: onsemi
- Series: SWITCHMODE™
- Packaging: Tube
- Part Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200V
- Current - Average Rectified (Io) (per Diode): 8A
- Voltage - Forward (Vf) (Max) @ If: 975mV @ 8A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 5µA @ 200V
- Operating Temperature - Junction: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
- Base Part Number: MUR16
- detail: Diode Array 1 Pair Common Cathode Standard 200V 8A Through Hole TO-220-3
