دیتاشیت CD74HC244E
مشخصات دیتاشیت
| نام دیتاشیت | CD54,74HC(T)240-41,244 |
|---|---|
| حجم فایل | 996.187 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |

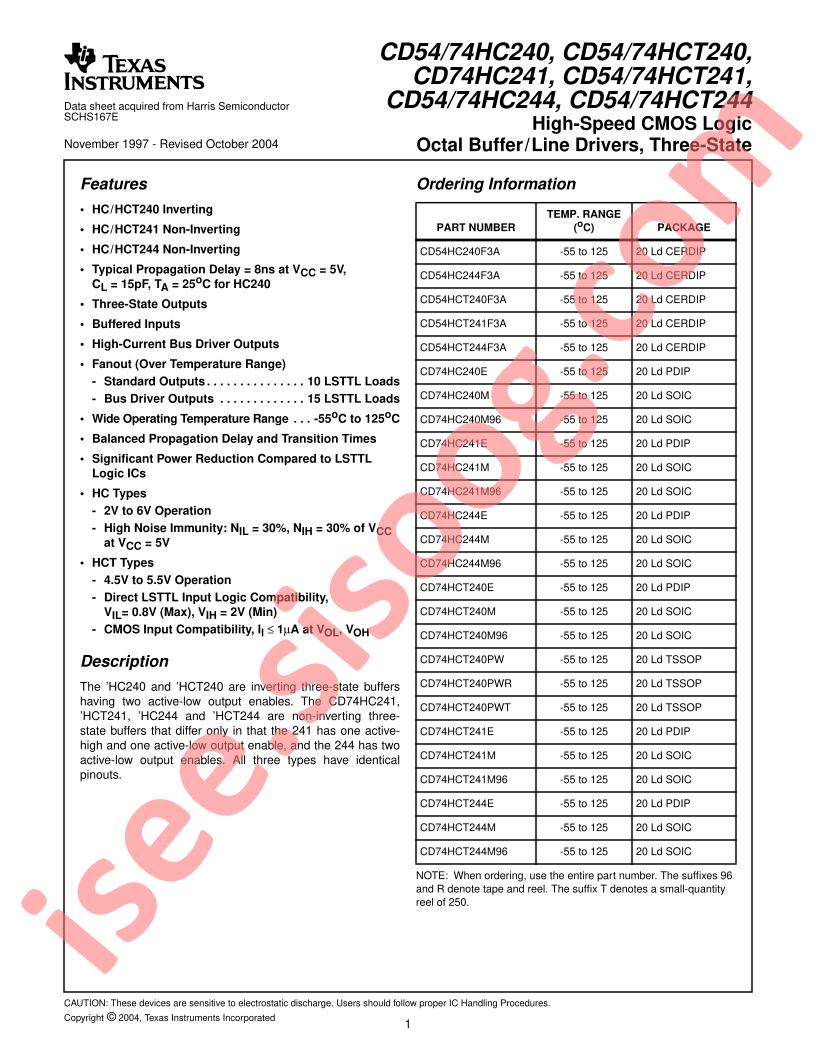

دانلود دیتاشیت CD54,74HC(T)240-41,244 |
CD54,74HC(T)240-41,244 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments CD74HC244E
- Input type: -
- output type: Tri-State
- Logic Family: 74HC
- Sink Current: 7.8mA
- Source Current: 7.8mA
- Supply Voltage: 2V~6V
- Number of Elements: 2
- Operating Temperature: -55°C~+125°C
- Number of Bits per Element: 4
- Package: PDIP-20
- Manufacturer: Texas Instruments
- Voltage - Supply: 2V ~ 6V
- Mounting Type: Through Hole
- Packaging: Tube
- Package / Case: 20-DIP (0.300", 7.62mm)
- Part Status: Active
- Current - Output High, Low: 7.8mA, 7.8mA
- Series: 74HC
- Supplier Device Package: 20-PDIP
- Logic Type: Buffer, Non-Inverting
- Base Part Number: 74HC244
- detail: Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-PDIP
