دیتاشیت CD74HC564M96

مشخصات دیتاشیت

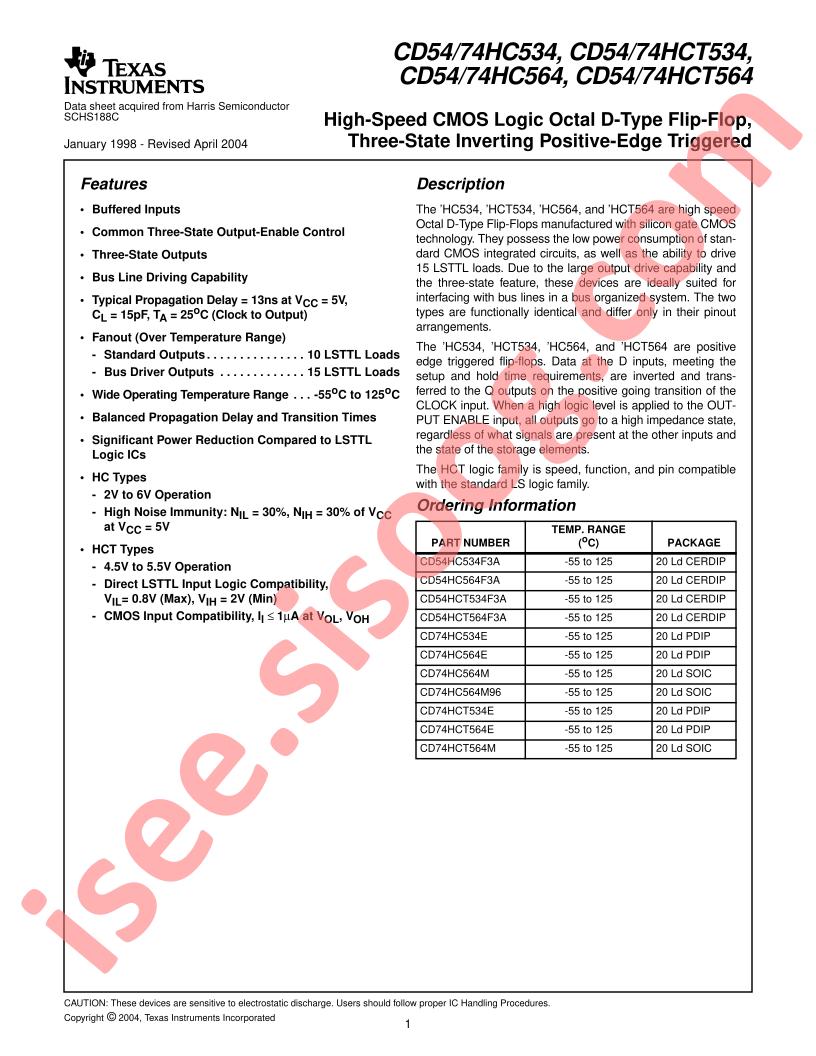

دانلود دیتاشیت CD54,74HC(T)534,564	CD54,74HC(T)534,564 Datasheet

RoHS: true
Type: D-Type
Series: 74HC
Category: Logic ICs/Flip Flops
Function: Standard
Datasheet: Texas Instruments CD74HC564M96
Output Type: Tri-State;Inverted
Sink Current: 7.8mA
Trigger Type: 上升沿
Source Current: 7.8mA
Supply Voltage: 2V~6V
Clock Frequency: 60MHz
Input Capacitance: 10pF
Quiescent Current (Iq): 8uA
Maximum Propagation Delay: 28ns@6V,50pF
Package: SOP-20-300mil
Manufacturer: Texas Instruments
Max Propagation Delay @ V, Max CL: 28ns @ 6V, 50pF
Number of Elements: 1
Operating Temperature: -55°C ~ 125°C (TA)
Package / Case: 20-SOIC (0.295", 7.50mm Width)
Current - Quiescent (Iq): 8µA
Base Part Number: 74HC564
Supplier Device Package: 20-SOIC
Number of Bits per Element: 8
Packaging: Cut Tape (CT)
Current - Output High, Low: 7.8mA, 7.8mA
Mounting Type: Surface Mount
Voltage - Supply: 2V ~ 6V
Part Status: Active
detail: Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-SOIC (0.295", 7.50mm Width)
