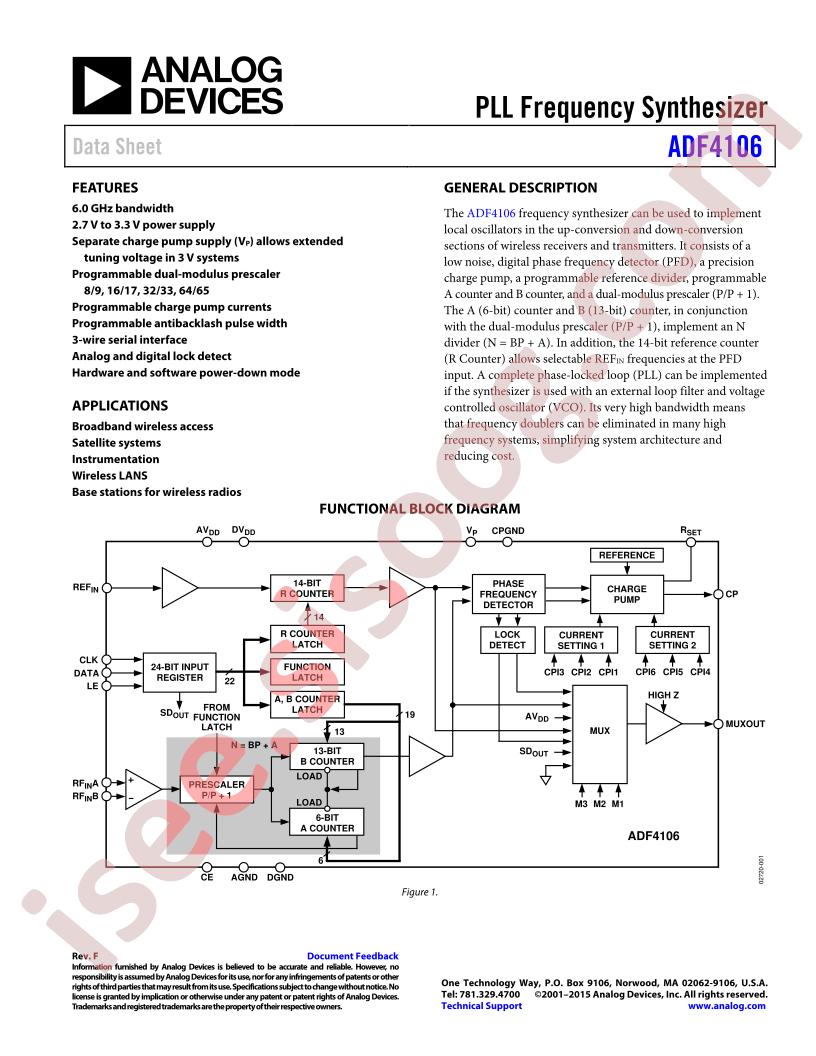

ADF4106 Datasheet

ADF4106

Datasheet specifications

Datasheet's name ADF4106
File size 352.222 KB
File type pdf
Number of pages 24

Download Datasheet ADF4106

Download Datasheet

Other documentations

ADF4106BRUZ 24 pages

Technical specifications

  • RoHS: true
  • Category: RTC/Clock Chip/Clock Generators / Frequency Synthesizers / PLL
  • Datasheet: Analog Devices ADF4106BRUZ-R7
  • Supply Voltage: 2.7V~3.3V
  • Operating Temperatue: -40°C~+85°C
  • Package: TSSOP-16
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Clock/Frequency Synthesizer (RF)
  • PLL: Yes
  • Input: CMOS, TTL
  • Output: Clock
  • Number of Circuits: 1
  • Ratio - Input:Output: 2:1
  • Differential - Input:Output: Yes/No
  • Frequency - Max: 6GHz
  • Divider/Multiplier: Yes/No
  • Voltage - Supply: 2.7V ~ 3.3V
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Surface Mount
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 16-TSSOP
  • Base Part Number: ADF4106
  • detail: IC PLL FREQ SYNTHESIZER 16TSSOP
