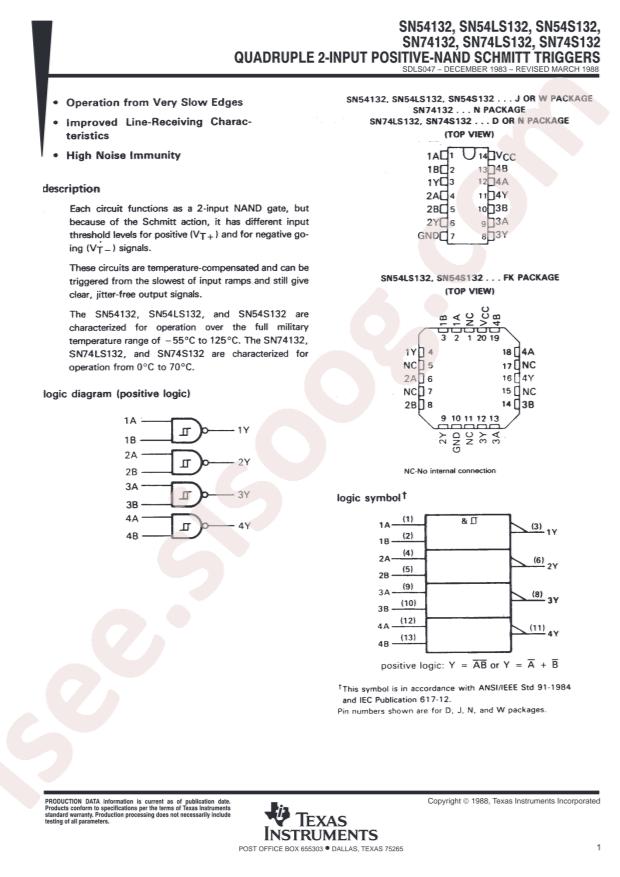

- دیتاشیت SN74LS132N
دیتاشیت SN74LS132N
مشخصات دیتاشیت
| نام دیتاشیت | SN(54,74)LS132, SN(54,74)S132, SN(54,74)4132 |
|---|---|
| حجم فایل | 1254.471 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 26 |
دانلود دیتاشیت SN(54,74)LS132, SN(54,74)S132, SN(54,74)4132 |
SN(54,74)LS132, SN(54,74)S132, SN(54,74)4132 Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74LS
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74LS132N
- Sink Current: 8mA
- Source Current: 400uA
- Supply Voltage: 4.75V~5.25V
- Logic Gate Type: NAND Gates
- Number of Channels: 4
- Low Level Range (VIL): 0.5V
- Operating Temperature: 0°C~+70°C
- High Level Range (VIH): 1.9V
- Propagation Delay Time: 22ns@5V,15pF
- Quiescent Current (Max): 11mA
- Package: PDIP-14
- Manufacturer: Texas Instruments
- Mounting Type: Through Hole
- Logic Level - Low: 0.5V
- Current - Quiescent (Max): 11mA
- Voltage - Supply: 4.75V ~ 5.25V
- Number of Circuits: 4
- Packaging: Tube
- Package / Case: 14-DIP (0.300", 7.62mm)
- Logic Level - High: 1.9V
- Part Status: Active
- Current - Output High, Low: 400µA, 8mA
- Features: Schmitt Trigger
- Base Part Number: SN74LS13
- Supplier Device Package: 14-PDIP
- Number of Inputs: 2
- Logic Type: NAND Gate
- Max Propagation Delay @ V, Max CL: 22ns @ 5V, 15pF
- detail: NAND Gate IC 4 Channel Schmitt Trigger 14-PDIP
