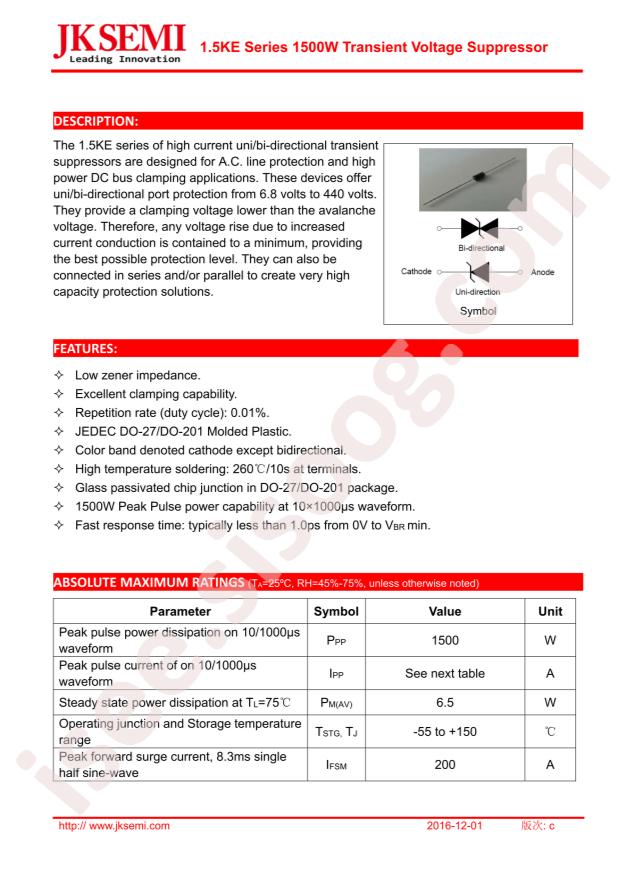

1.5KE200A Datasheet

1.5KE200A

Datasheet specifications

Datasheet's name 1.5KE200A
File size 91.582 KB
File type pdf
Number of pages 5

Download Datasheet 1.5KE200A

Download Datasheet

Other documentations

P6KE20A 146 pages

1.5KE36A 6 pages

1.5KE47A 6 pages

1.5KE300CA 5 pages

1.5KE20A 4 pages

1.5KE15A 4 pages

1.5KE200CA 4 pages

1.5KE7.5CA 4 pages

1.5KE200A 5 pages

1.5KE200A 6 pages

1.5KE200A 4 pages

Technical specifications

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS
  • Datasheet: Littelfuse 1.5KE200A
  • Breakdown Voltage: 190V
  • Unidirectional Channels: 1
  • Maximum Clamping Voltage: 274V
  • Reverse Stand-Off Voltage (Vrwm): 171V
  • Peak Pulse Current (Ipp)@10/1000us: 5.5A
  • Peak Pulse Power Dissipation (Ppp)@10/1000us: 1.5kW
  • Package: DO-201
  • Manufacturer: Littelfuse
  • Bidirectional Channels: 0
  • Reverse Leakage Current (Ir): 5uA
  • Series: Mosorb™
  • Packaging: Bulk
  • Part Status: Obsolete
  • Type: Zener
  • Voltage - Reverse Standoff (Typ): 171V
  • Voltage - Breakdown (Min): 190V
  • Voltage - Clamping (Max) @ Ipp: 274V
  • Current - Peak Pulse (10/1000µs): 5.5A
  • Power - Peak Pulse: 1500W (1.5kW)
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: -
  • Operating Temperature: -65°C ~ 175°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: DO-201AD, Axial
  • Supplier Device Package: Axial
  • Base Part Number: 1.5KE
  • detail: 274V Clamp 5.5A Ipp Tvs Diode Through Hole Axial
