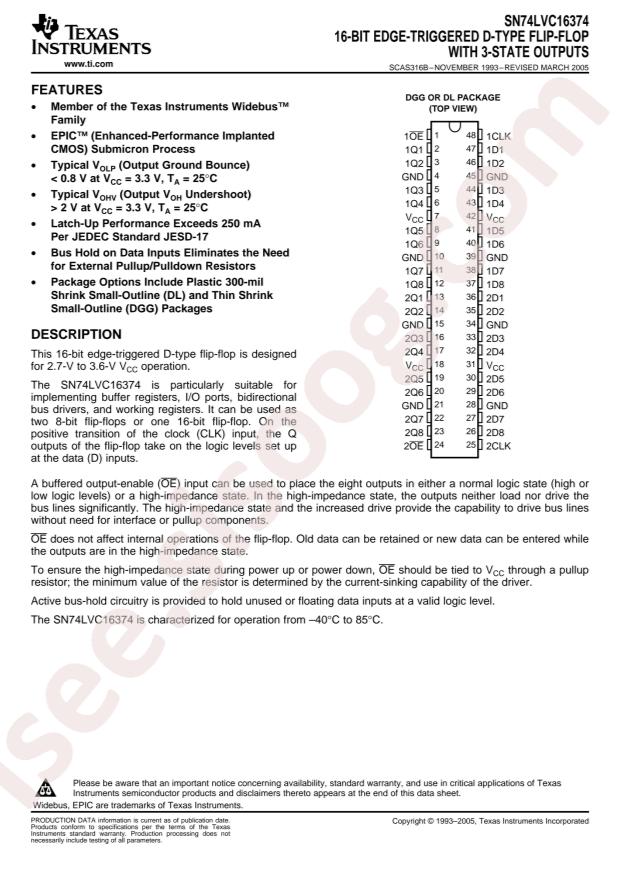

SN74LVC16374DGGR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN74LVC16374DGGR
|
|
حجم فایل
|
100.988
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
16
|
مشخصات فنی
-
RoHS:
true
-
Type:
D-Type
-
Series:
74LVC
-
Category:
Logic ICs/Flip Flops
-
Function:
Standard
-
Datasheet:
Texas Instruments SN74LVC16374DGGR
-
Output Type:
Tri-State;Non-Inverted
-
Sink Current:
24mA
-
Trigger Type:
上升沿
-
Source Current:
24mA
-
Supply Voltage:
2.7V~3.6V
-
Clock Frequency:
100MHz
-
Input Capacitance:
3.5pF
-
Quiescent Current (Iq):
40uA
-
Maximum Propagation Delay:
7.5ns@3.3V,50pF
-
Package:
TSSOP-48-6.1mm
-
Manufacturer:
Texas Instruments
-
Package / Case:
48-TFSOP (0.240", 6.10mm Width)
-
Current - Output High, Low:
24mA, 24mA
-
Number of Elements:
2
-
Current - Quiescent (Iq):
40µA
-
Part Status:
Active
-
Number of Bits per Element:
8
-
Mounting Type:
Surface Mount
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Max Propagation Delay @ V, Max CL:
7.5ns @ 3.3V, 50pF
-
Voltage - Supply:
2.7V ~ 3.6V
-
Packaging:
Cut Tape (CT)
-
Base Part Number:
SN74LVC16
-
Supplier Device Package:
48-TSSOP
-
detail:
Flip Flop 2 Element D-Type 8 Bit Positive Edge 48-TFSOP (0.240", 6.10mm Width)
