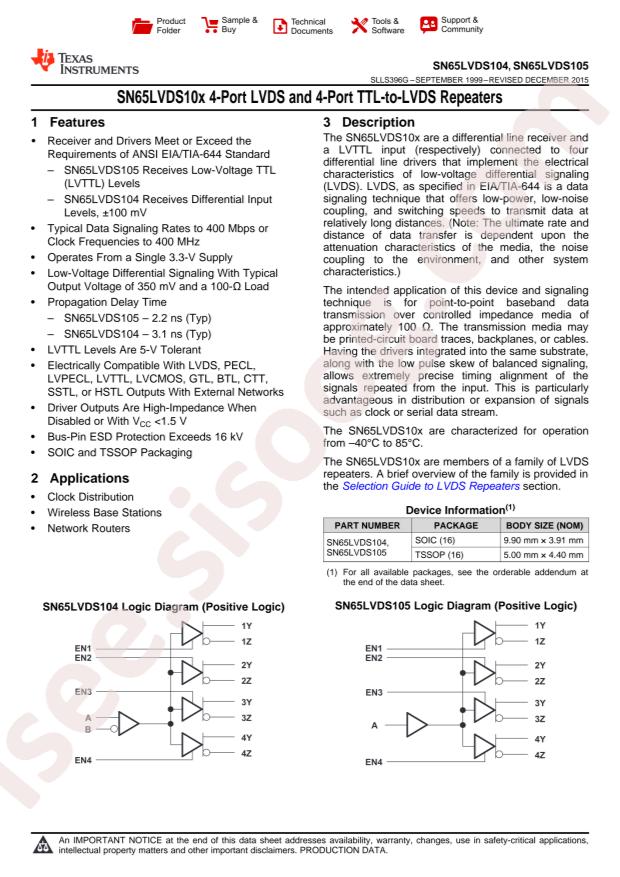

SN65LVDS104PWR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN65LVDS104PWR
|
|
حجم فایل
|
114.894
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
41
|
مشخصات فنی
-
RoHS:
true
-
Type:
Buffers;Multiplexers
-
Category:
Communication Interface Chip/UART/485/232/LVDS ICs
-
Protocol:
LVDS
-
Data Rate:
400Mbps
-
Datasheet:
Texas Instruments SN65LVDS104PWR
-
Supply Voltage:
3V~3.6V
-
Numberof Drivers:
4
-
Numberof Receivers:
0
-
Package:
TSSOP-16
-
Manufacturer:
Texas Instruments
-
Delay Time:
3.1ns
-
Current - Supply:
23mA
-
Supplier Device Package:
16-TSSOP
-
Number of Channels:
1 x 1:4
-
Applications:
-
-
Capacitance - Input:
3pF
-
Operating Temperature:
-40°C ~ 85°C
-
Mounting Type:
Surface Mount
-
Output:
LVDS
-
Base Part Number:
SN65L
-
Packaging:
Cut Tape (CT)
-
Voltage - Supply:
3V ~ 3.6V
-
Series:
-
-
Package / Case:
16-TSSOP (0.173", 4.40mm Width)
-
Signal Conditioning:
-
-
Part Status:
Active
-
Input:
LVDS
-
Data Rate (Max):
400Mbps
-
detail:
Buffer, Multiplexer 1 x 1:4 Channel 400Mbps 16-TSSOP
