دیتاشیت STP7NK80ZFP

ST(B,P)7NK80Z(-1,FP)

مشخصات دیتاشیت

نام دیتاشیت ST(B,P)7NK80Z(-1,FP)
حجم فایل 957.819 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

دانلود دیتاشیت ST(B,P)7NK80Z(-1,FP)

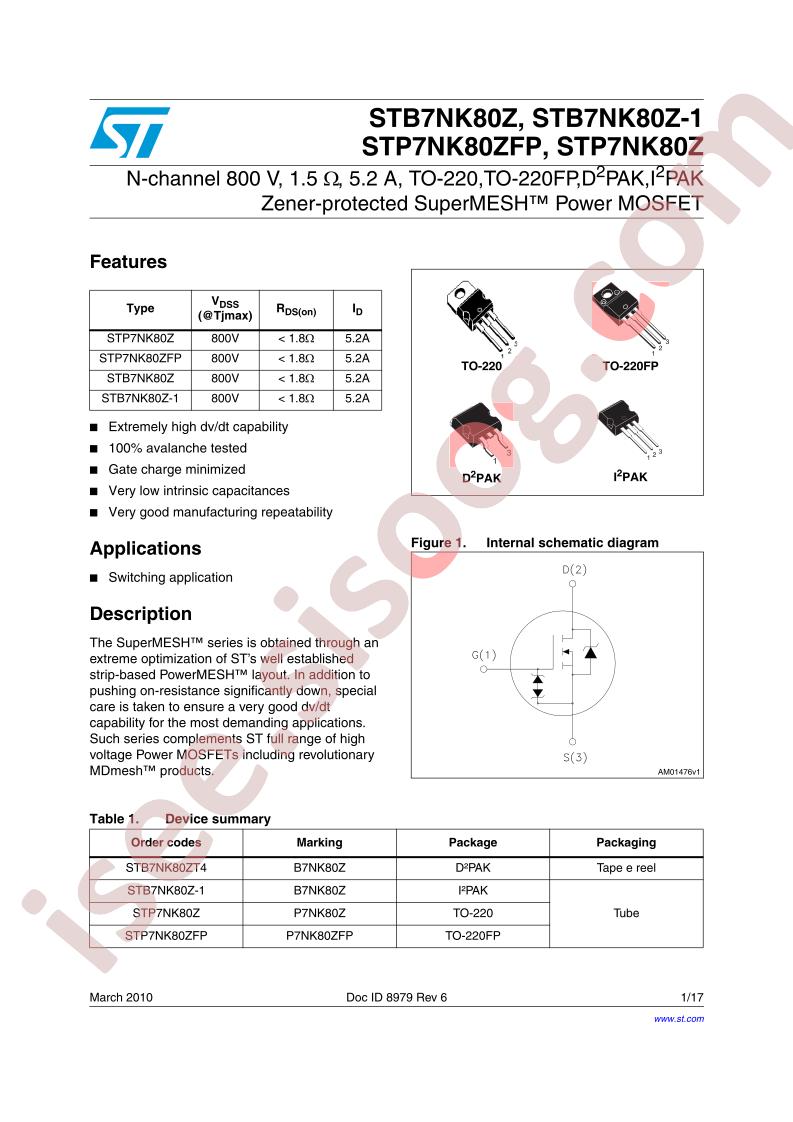

ST(B,P)7NK80Z(-1,FP) Datasheet

مشخصات

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STP7NK80ZFP
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 30W
  • Total Gate Charge (Qg@Vgs): 56nC@10V
  • Drain Source Voltage (Vdss): 800V
  • Input Capacitance (Ciss@Vds): 1138pF@25V
  • Continuous Drain Current (Id): 5.2A
  • Gate Threshold Voltage (Vgs(th)@Id): 4.5V@100uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 1.8Ω@10V,2.6A
  • Package: TO-220FPAB-3
  • Manufacturer: STMicroelectronics
  • Series: SuperMESH™
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 800V
  • Current - Continuous Drain (Id) @ 25°C: 5.2A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 1.8Ohm @ 2.6A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 100µA
  • Gate Charge (Qg) (Max) @ Vgs: 56nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 1138pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 30W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220FP
  • Package / Case: TO-220-3 Full Pack
  • Base Part Number: STP7N
  • detail: N-Channel 800V 5.2A (Tc) 30W (Tc) Through Hole TO-220FP
