دیتاشیت STW48N60DM2

STW48N60DM2

مشخصات دیتاشیت

نام دیتاشیت STW48N60DM2
حجم فایل 607.193 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت STW48N60DM2

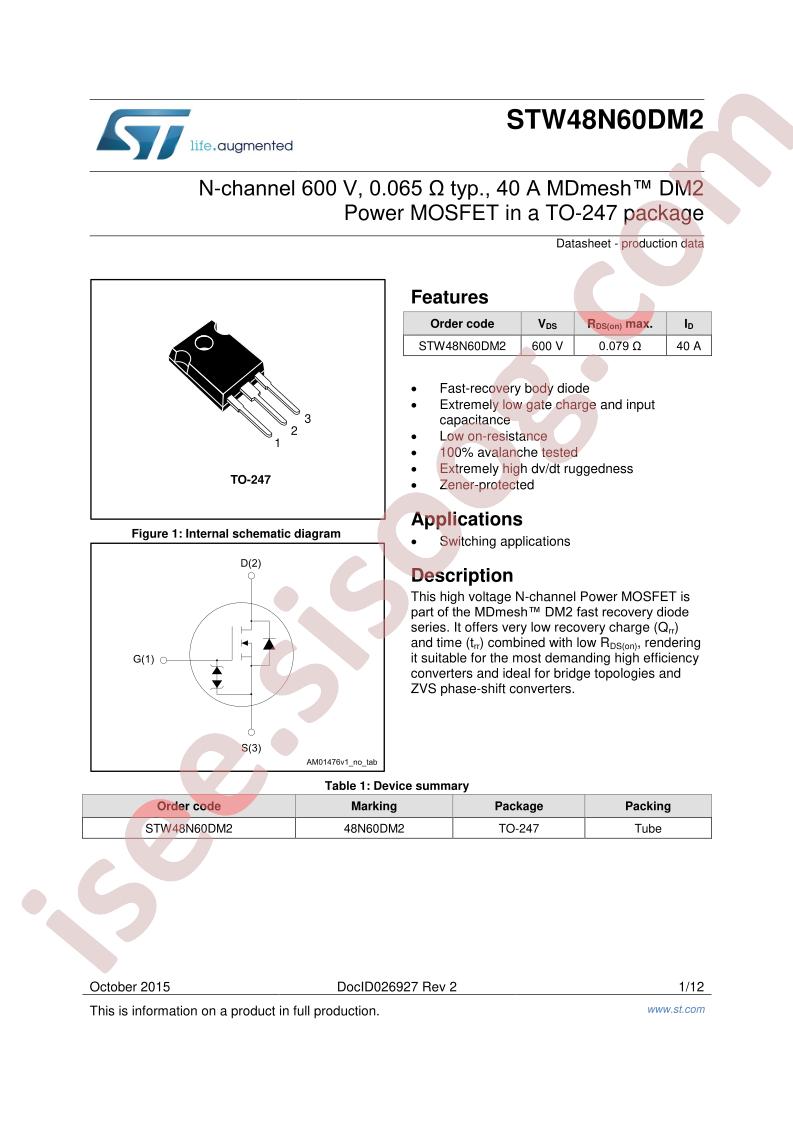

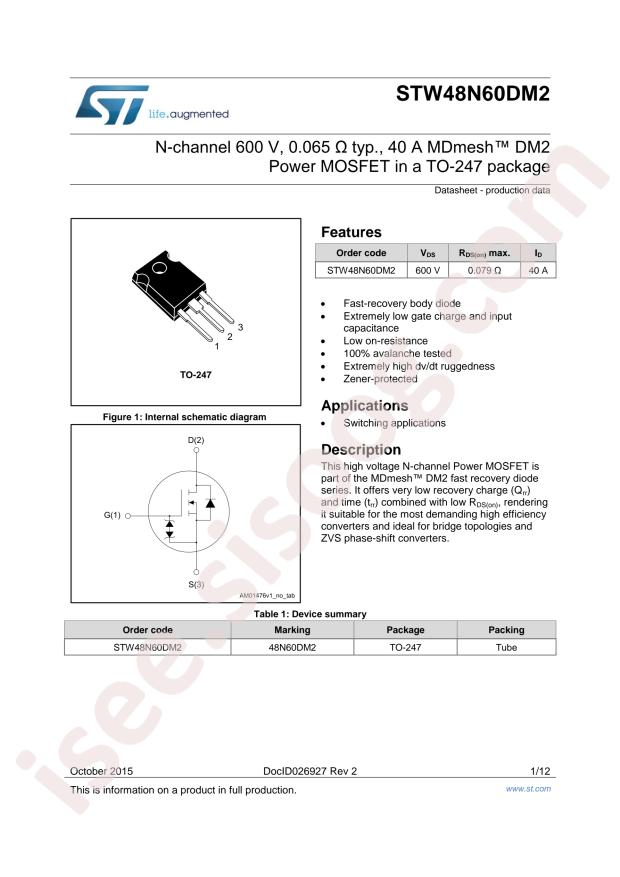

STW48N60DM2 Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: MDmesh™ DM2
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 40A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 79mOhm @ 20A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 70nC @ 10V
  • Vgs (Max): ±25V
  • Input Capacitance (Ciss) (Max) @ Vds: 3250pF @ 100V
  • FET Feature: -
  • Power Dissipation (Max): 300W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-247
  • Package / Case: TO-247-3
  • Base Part Number: STW48N
  • detail: N-Channel 600V 40A (Tc) 300W (Tc) Through Hole TO-247
