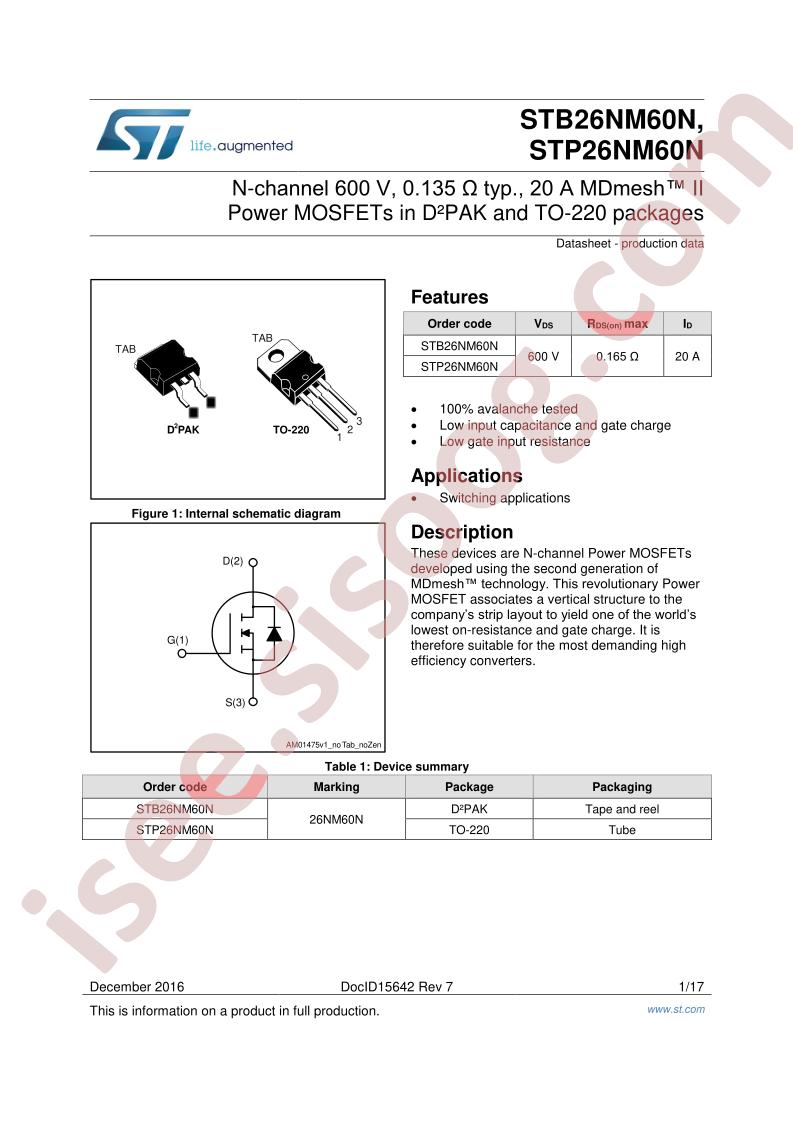

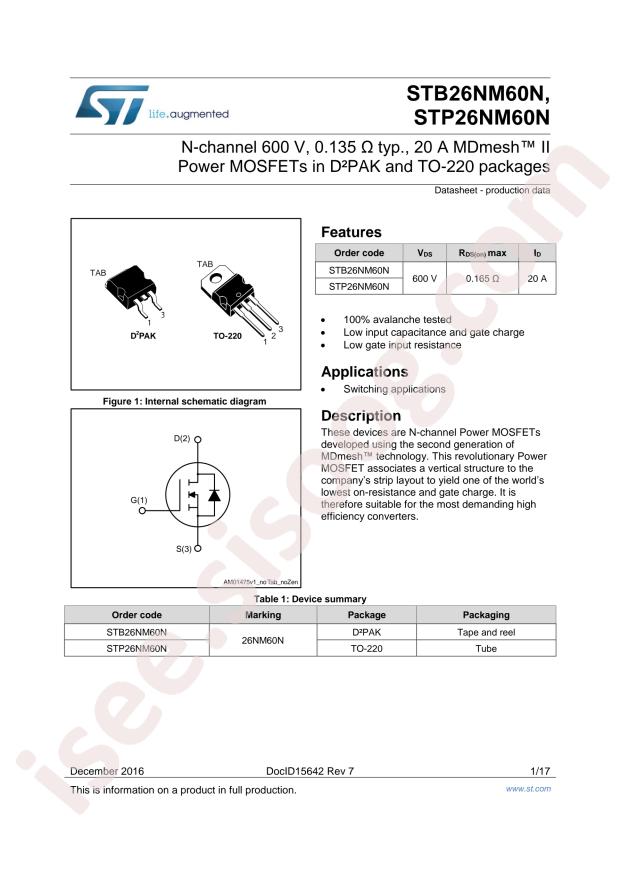

دیتاشیت STP26NM60N
مشخصات دیتاشیت
| نام دیتاشیت |
STB,F,P26NM60N
|
| حجم فایل |
1064.454
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
17
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STP26NM60N
-
Power Dissipation (Pd):
140W
-
Total Gate Charge (Qg@Vgs):
60nC@10V
-
Drain Source Voltage (Vdss):
600V
-
Input Capacitance (Ciss@Vds):
1800pF@50V
-
Continuous Drain Current (Id):
20A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
165mΩ@10V,10A
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
MDmesh™ II
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
600V
-
Current - Continuous Drain (Id) @ 25°C:
20A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
165mOhm @ 10A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
60nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
1800pF @ 50V
-
FET Feature:
-
-
Power Dissipation (Max):
140W (Tc)
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220AB
-
Package / Case:
TO-220-3
-
Base Part Number:
STP26N
-
detail:
N-Channel 600V 20A (Tc) 140W (Tc) Through Hole TO-220AB
