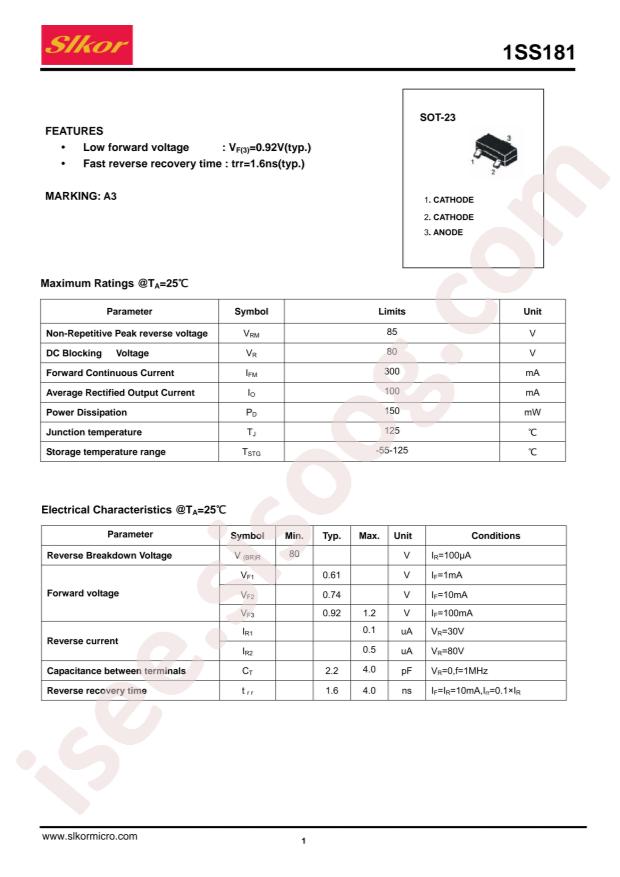

دیتاشیت 1SS181
مشخصات دیتاشیت
| نام دیتاشیت |
SS12 - S100
|
| حجم فایل |
193.085
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Switching Diode
-
Datasheet:
FUXINSEMI 1SS181
-
Power Dissipation:
150mW
-
Diode Configuration:
1 Pair Common Anode
-
Reverse Voltage (Vr):
80V
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Forward Voltage (Vf@If):
920mV@100mA
-
Reverse Leakage Current:
500nA@80V
-
Reverse Recovery Time (trr):
1.6ns
-
Average Rectified Current (Io):
100mA
-
Package:
SOT-23(TO-236)
-
Manufacturer:
FUXINSEMI
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
80V
-
Current - Average Rectified (Io):
1A
-
Voltage - Forward (Vf) (Max) @ If:
850mV @ 1A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
200µA @ 80V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
DO-214AC, SMA
-
Supplier Device Package:
SMA (DO-214AC)
-
Operating Temperature - Junction:
-65°C ~ 125°C
-
Base Part Number:
SS18
-
detail:
Diode Schottky 80V 1A Surface Mount SMA (DO-214AC)
