دیتاشیت TPS22944DCKR
مشخصات دیتاشیت
| نام دیتاشیت | TPS22941-45 Datasheet |
|---|---|
| حجم فایل | 1193.431 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |

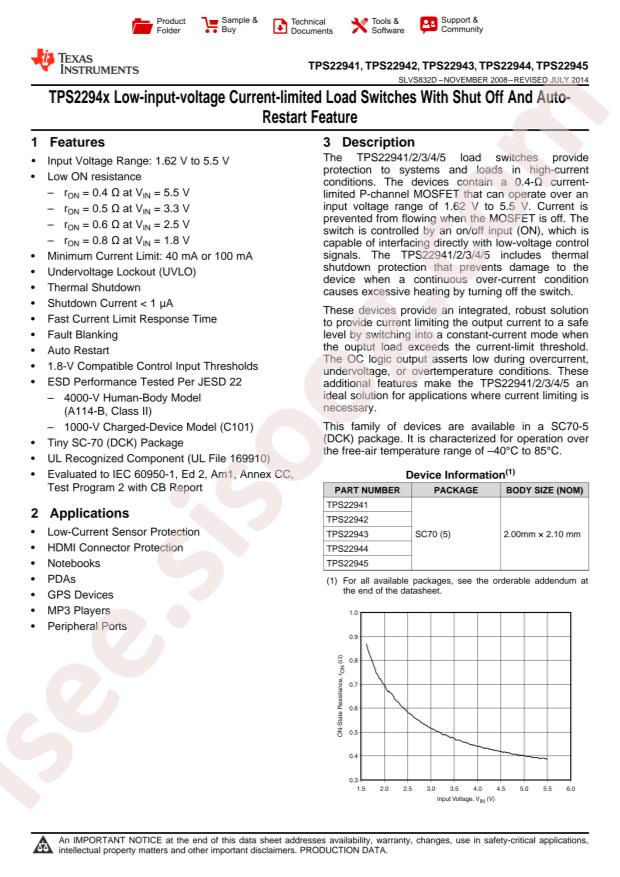

دانلود دیتاشیت TPS22941-45 Datasheet |
TPS22941-45 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Power Distribution Switches
- Datasheet: Texas Instruments TPS22944DCKR

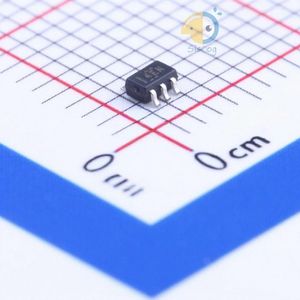

- Package: SC-70-5
- Manufacturer: Texas Instruments
- Interface: On/Off
- Current - Output (Max): 100mA
- Operating Temperature: -40°C ~ 125°C (TJ)
- Packaging: Cut Tape (CT)
- Voltage - Supply (Vcc/Vdd): Not Required
- Features: -
- Fault Protection: Current Limiting (Fixed), Over Temperature, UVLO
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
- Switch Type: General Purpose
- Voltage - Load: 1.62V ~ 5.5V
- Rds On (Typ): 400mOhm
- Supplier Device Package: SC-70-5
- Mounting Type: Surface Mount
- Input Type: Non-Inverting
- Base Part Number: TPS229
- Ratio - Input:Output: 1:1
- Output Type: P-Channel
- Part Status: Active
- Series: -
- Output Configuration: High Side
- Number of Outputs: 1
- detail: Power Switch/Driver 1:1 P-Channel 100mA SC-70-5
