دیتاشیت STP30NF20

STP30NF20, STB30NF20, STW30NF20

مشخصات دیتاشیت

نام دیتاشیت STP30NF20, STB30NF20, STW30NF20
حجم فایل 395.72 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

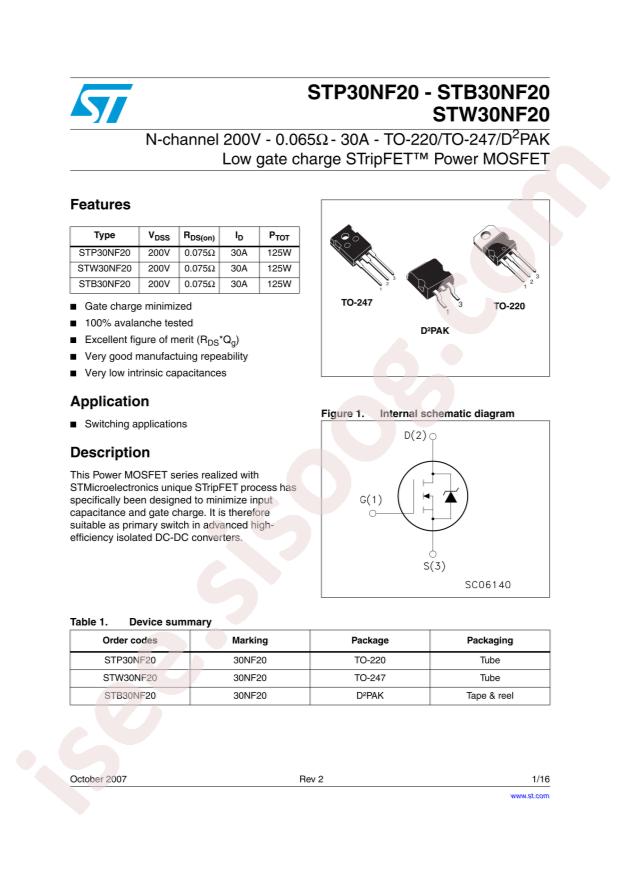

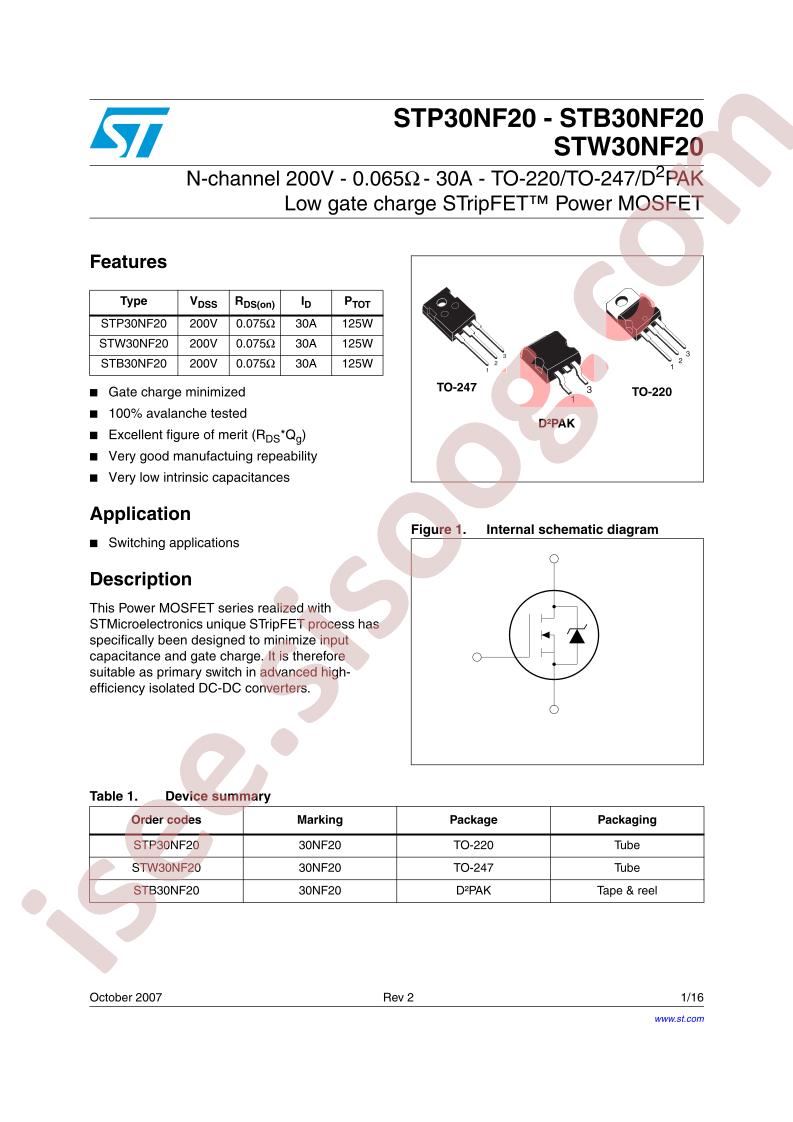

دانلود دیتاشیت STP30NF20, STB30NF20, STW30NF20

STP30NF20, STB30NF20, STW30NF20 Datasheet

مشخصات

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STP30NF20
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 125W
  • Total Gate Charge (Qg@Vgs): 38nC@10V
  • Drain Source Voltage (Vdss): 200V
  • Input Capacitance (Ciss@Vds): 1597pF@25V
  • Continuous Drain Current (Id): 30A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 75mΩ@10V,15A
  • Package: TO-220
  • Manufacturer: STMicroelectronics
  • Series: STripFET™
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 200V
  • Current - Continuous Drain (Id) @ 25°C: 30A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 75mOhm @ 15A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 38nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 1597pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 125W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220AB
  • Package / Case: TO-220-3
  • Base Part Number: STP30N
  • detail: N-Channel 200V 30A (Tc) 125W (Tc) Through Hole TO-220AB
