دیتاشیت آی سی SN74LVC1T45DBVR

SN74LVC1T45 Datasheet

مشخصات دیتاشیت

نام دیتاشیت SN74LVC1T45 Datasheet
حجم فایل 1614.186 کیلوبایت
نوع فایل pdf
تعداد صفحات 35

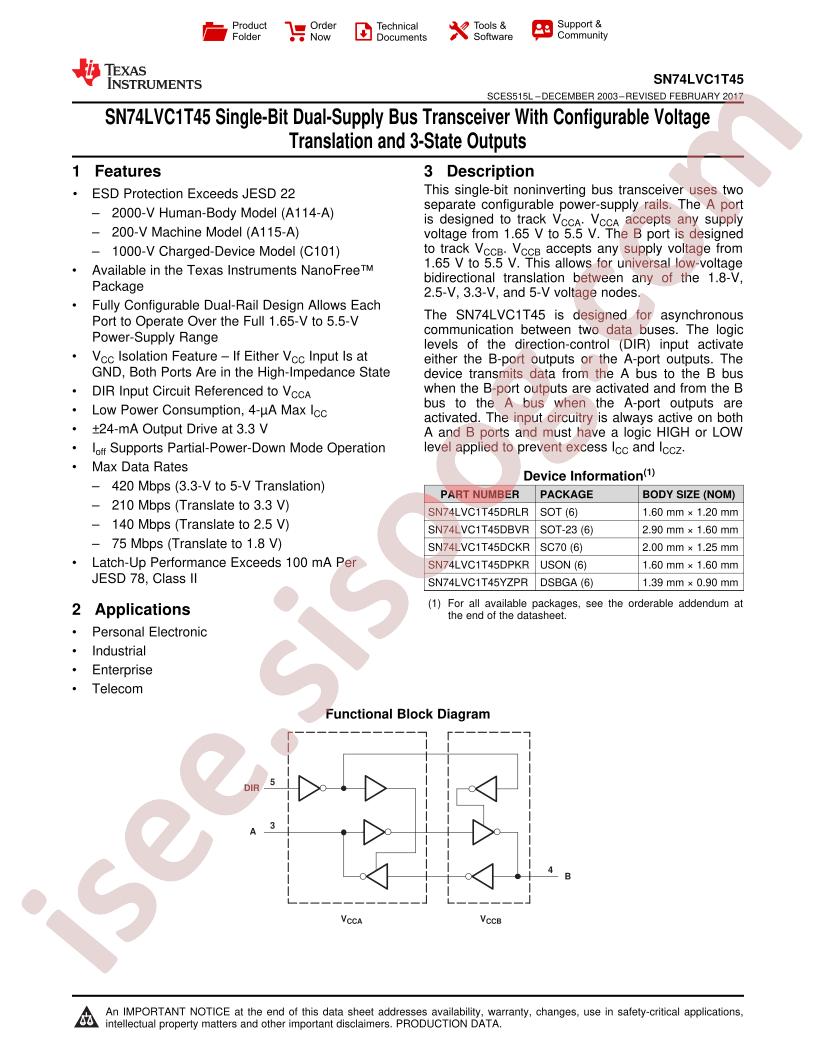

دانلود دیتاشیت SN74LVC1T45 Datasheet

SN74LVC1T45 Datasheet Datasheet

مشخصات

  • Output Signal: -
  • Voltage - VCCB: 1.65V ~ 5.5V
  • Packaging: Cut Tape (CT)
  • Base Part Number: SN74LVC1T
  • Manufacturer: Texas Instruments
  • Translator Type: Voltage Level
  • Input Signal: -
  • Voltage - VCCA: 1.65V ~ 5.5V
  • Package / Case: SOT-23-6
  • Series: 74LVC
  • Mounting Type: Surface Mount
  • Supplier Device Package: SOT-23-6
  • Channel Type: Bidirectional
  • Data Rate: 420Mbps
  • Number of Circuits: 1
  • Features: -
  • Output Type: Tri-State, Non-Inverted
  • Part Status: Active
  • Channels per Circuit: 1
  • Operating Temperature: -40°C ~ 85°C (TA)
  • detail: Voltage Level Translator Bidirectional 1 Circuit 1 Channel 420Mbps SOT-23-6
