دیتاشیت آی سی UC2842AN

مشخصات دیتاشیت

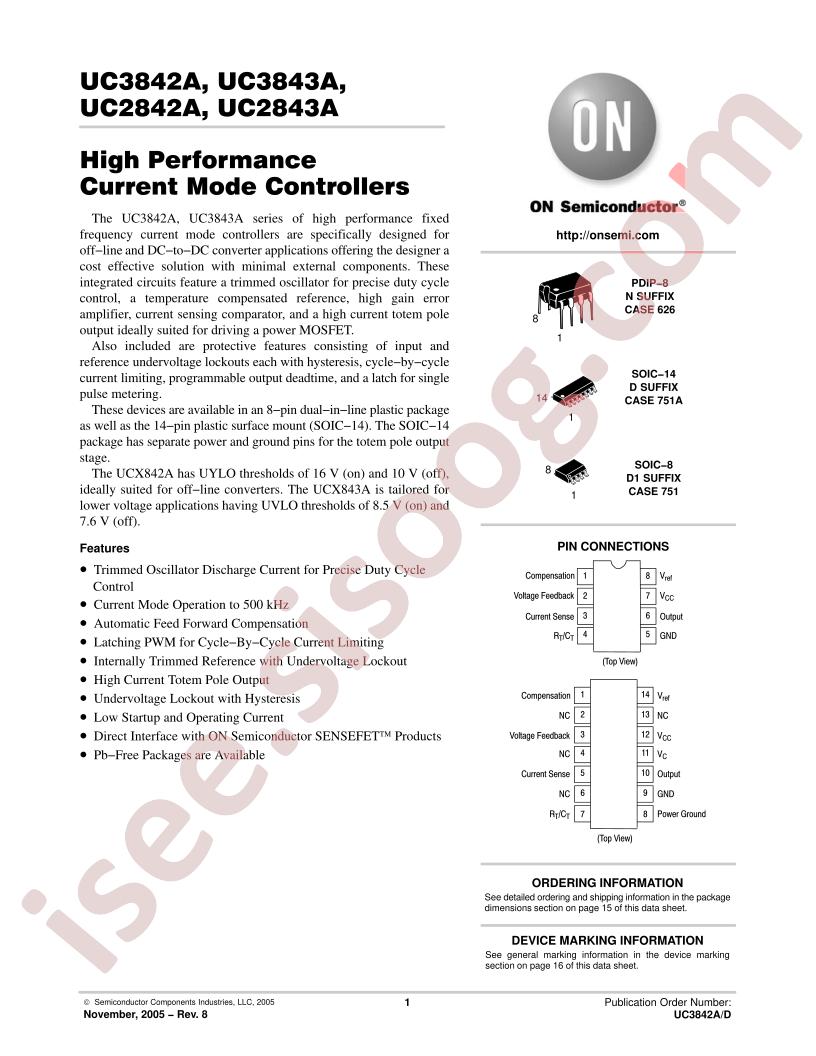

دانلود دیتاشیت UC2842A(43A), UC3842A(43A)	UC2842A(43A), UC3842A(43A) Datasheet

Manufacturer: ON Semiconductor
Series: -
Packaging: Tube
Part Status: Obsolete
Output Type: Transistor Driver
Function: Step-Up, Step-Up/Step-Down
Output Configuration: Positive
Topology: Boost, Flyback
Number of Outputs: 1
Output Phases: 1
Voltage - Supply (Vcc/Vdd): 10V ~ 30V
Frequency - Switching: Up to 500kHz
Duty Cycle (Max): 96%
Synchronous Rectifier: No
Clock Sync: No
Serial Interfaces: -
Control Features: Frequency Control
Operating Temperature: -25°C ~ 85°C (TA)
Mounting Type: Through Hole
Package / Case: 8-DIP (0.300", 7.62mm)
Supplier Device Package: 8-PDIP
Base Part Number: UC284
detail: Boost, Flyback Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-PDIP
