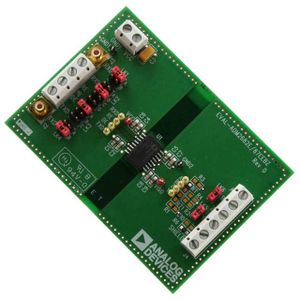

- ADM2682E,87E

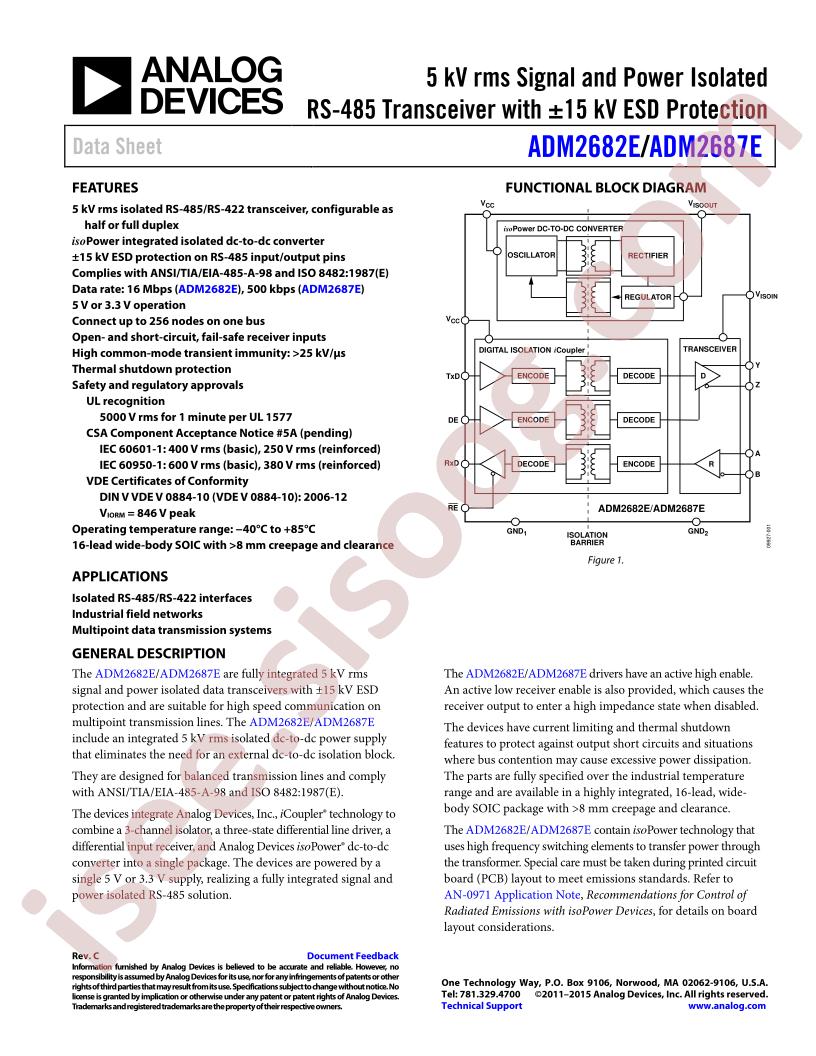

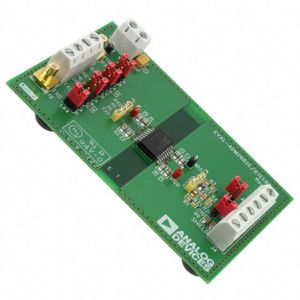

ADM2682EBRIZ-RL7 Datasheet
Datasheet specifications
| Datasheet's name | ADM2682E,87E |
|---|---|
| File size | 507.65 KB |
| File type | |
| Number of pages | 24 |
Download Datasheet ADM2682E,87E |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: Analog Devices Inc.
- Series: isoPower®
- Packaging: Cut Tape (CT)
- Part Status: Active
- Technology: Magnetic Coupling
- Type: RS422, RS485
- Isolated Power: Yes
- Number of Channels: 3
- Inputs - Side 1/Side 2: 2/1
- Channel Type: Unidirectional
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 25kV/µs
- Data Rate: 16Mbps
- Propagation Delay tpLH / tpHL (Max): 100ns, 100ns
- Pulse Width Distortion (Max): -
- Rise / Fall Time (Typ): 15ns, 15ns (Max)
- Voltage - Supply: 3.3V, 5V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SOIC-IC
- Base Part Number: ADM2682
- detail: RS422, RS485 Digital Isolator 5000Vrms 3 Channel 16Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
