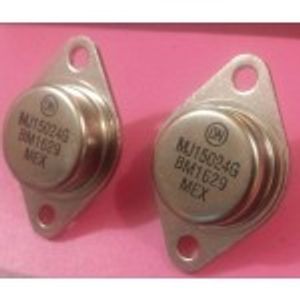

دیتاشیت MJ15024G TO-3 ترانزیستور
مشخصات دیتاشیت
| نام دیتاشیت | MJ15022, 24 |
|---|---|
| حجم فایل | 114.289 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 4 |
دانلود دیتاشیت MJ15022, 24 |
MJ15022, 24 Datasheet |
|---|
مشخصات
- Manufacturer: ON Semiconductor
- Series: -
- Packaging: Tray
- Part Status: Active
- Transistor Type: NPN
- Current - Collector (Ic) (Max): 16A
- Voltage - Collector Emitter Breakdown (Max): 250V
- Vce Saturation (Max) @ Ib, Ic: 4V @ 3.2A, 16A
- Current - Collector Cutoff (Max): 500µA
- DC Current Gain (hFE) (Min) @ Ic, Vce: 15 @ 8A, 4V
- Power - Max: 250W
- Frequency - Transition: 4MHz
- Operating Temperature: -65°C ~ 200°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-204AA, TO-3
- Supplier Device Package: TO-204 (TO-3)
- Base Part Number: MJ150
- detail: Bipolar (BJT) Transistor NPN 250V 16A 4MHz 250W Through Hole TO-204 (TO-3)
