دیتاشیت STH150N10F7-2 H2PAK-2 N-CH 90A

STH150N10F7-2

مشخصات دیتاشیت

نام دیتاشیت STH150N10F7-2
حجم فایل 975.216 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت STH150N10F7-2

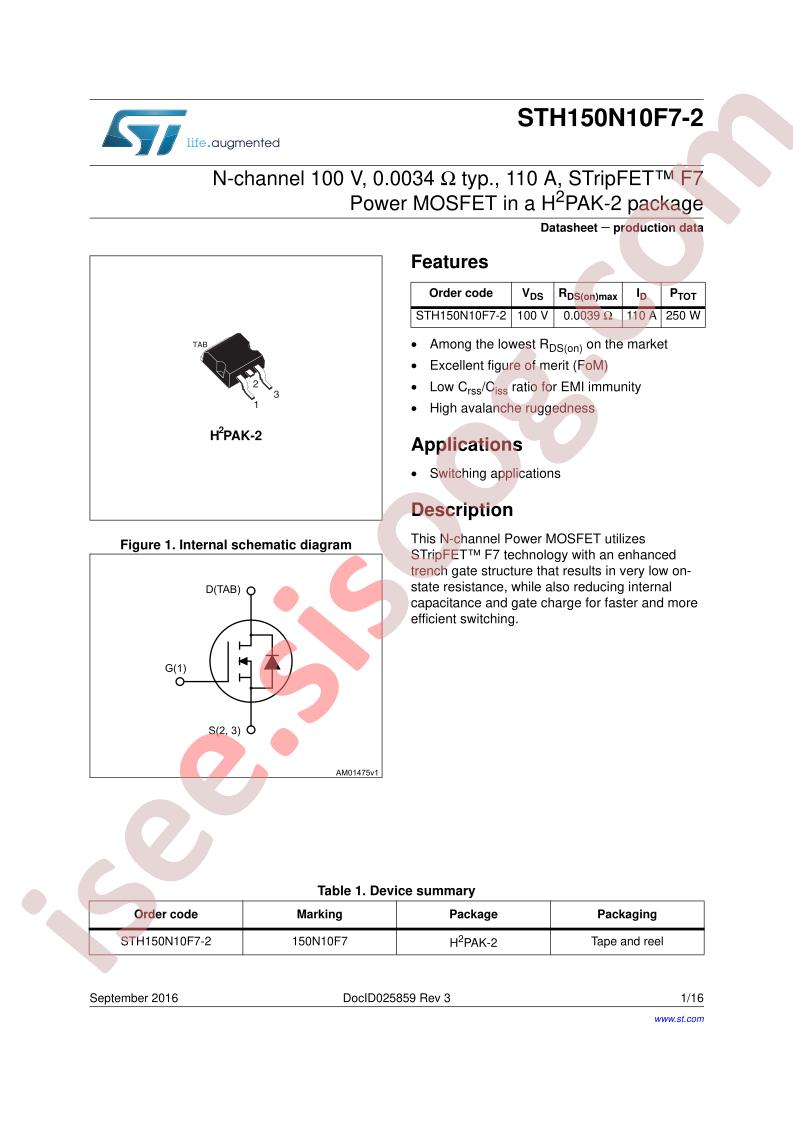

STH150N10F7-2 Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: DeepGATE™, STripFET™ VII
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 100V
  • Current - Continuous Drain (Id) @ 25°C: 110A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 3.9mOhm @ 55A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 117nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 8115pF @ 50V
  • FET Feature: -
  • Power Dissipation (Max): 250W (Tc)
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: H2Pak-2
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Base Part Number: STH150
  • detail: N-Channel 100V 110A (Tc) 250W (Tc) Surface Mount H2Pak-2
