دیتاشیت SMD CODE A4K NCP81161MNTBG

NCP81161

مشخصات دیتاشیت

نام دیتاشیت NCP81161
حجم فایل 128.643 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت NCP81161

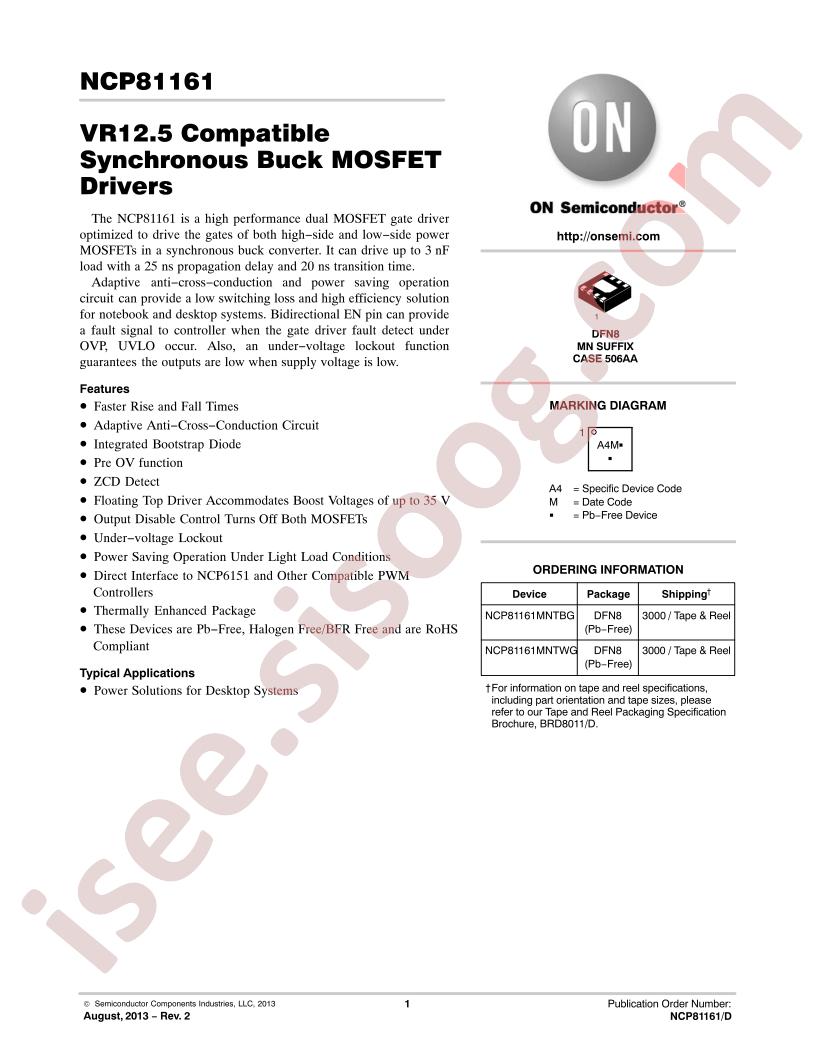

NCP81161 Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Driven Configuration: Half-Bridge
  • Channel Type: Synchronous
  • Number of Drivers: 2
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 4.5V ~ 13.2V
  • Logic Voltage - VIL, VIH: 1V, 2V
  • Current - Peak Output (Source, Sink): -
  • Input Type: Non-Inverting
  • High Side Voltage - Max (Bootstrap): 35V
  • Rise / Fall Time (Typ): 16ns, 11ns
  • Operating Temperature: 0°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount

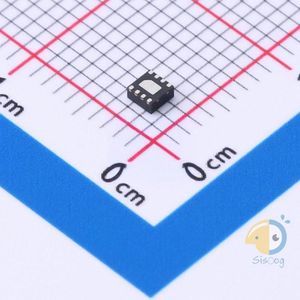

  • Package / Case: 8-VFDFN Exposed Pad
  • Supplier Device Package: 8-DFN (2x2)
  • Base Part Number: NCP81161
  • detail: Half-Bridge Gate Driver IC Non-Inverting 8-DFN (2x2)
