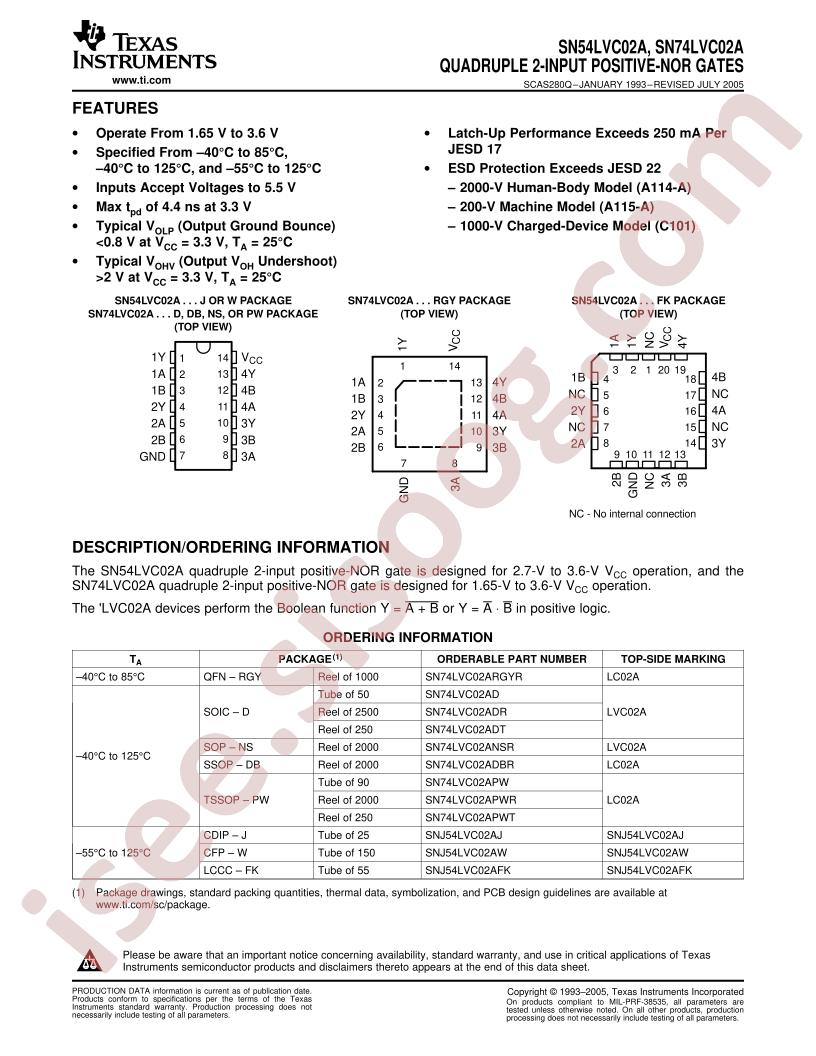

SN74LVC02ADR CODE:LVC02A SOP14 Datasheet

SN54LVC02A, SN74LVC02A

Datasheet specifications

Datasheet's name SN54LVC02A, SN74LVC02A
File size 1363.496 KB
File type pdf
Number of pages 26

Download Datasheet SN54LVC02A, SN74LVC02A

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Part Status: Active
  • Max Propagation Delay @ V, Max CL: 4.2ns @ 3.3V, 50pF
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Logic Level - Low: 0.7V ~ 0.8V
  • Current - Output High, Low: 24mA, 24mA
  • Series: 74LVC
  • Base Part Number: SN74LVC02
  • Current - Quiescent (Max): 1µA
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 125°C
  • Number of Inputs: 2
  • Voltage - Supply: 1.65V ~ 3.6V
  • Number of Circuits: 4
  • Packaging: Cut Tape (CT)
  • Manufacturer: Texas Instruments
  • Logic Type: NOR Gate
  • Supplier Device Package: 14-SOIC
  • Features: -
  • Logic Level - High: 1.7V ~ 2V
  • detail: NOR Gate IC 4 Channel 14-SOIC
