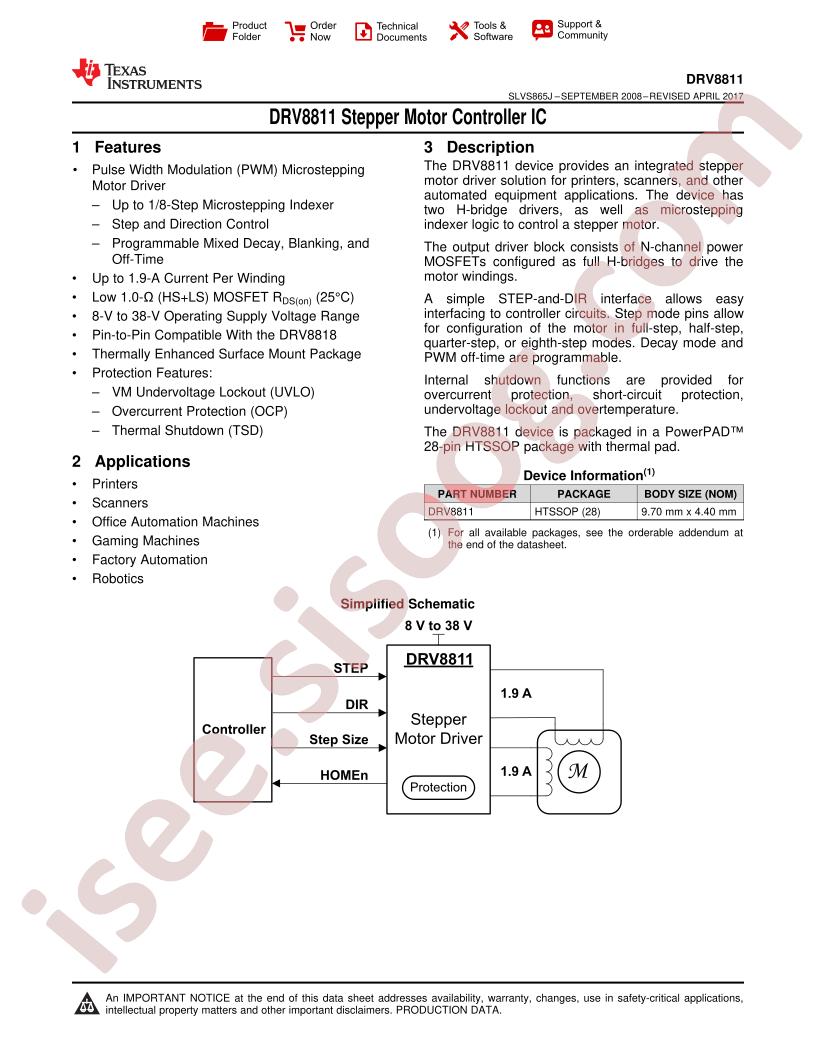

- Datasheet DRV8811
DRV8811PWPR HTSSOP-28 Datasheet
Datasheet specifications
| Datasheet's name | DRV8811 |
|---|---|
| File size | 2254.709 KB |
| File type | |
| Number of pages | 33 |
Download Datasheet DRV8811 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Package / Case: 28-PowerTSSOP (0.173", 4.40mm Width)
- Part Status: Active
- Base Part Number: DRV8811
- Current - Output: 1.9A
- Series: -
- Voltage - Supply: 3V ~ 5.5V
- Technology: Power MOSFET
- Manufacturer: Texas Instruments
- Mounting Type: Surface Mount
- Voltage - Load: 8V ~ 38V
- Motor Type - AC, DC: -
- Interface: Logic
- Motor Type - Stepper: Bipolar
- Packaging: Cut Tape (CT)
- Function: Driver - Fully Integrated, Control and Power Stage
- Output Configuration: Half Bridge (4)
- Supplier Device Package: 28-HTSSOP
- Operating Temperature: -40°C ~ 150°C (TJ)
- Step Resolution: 1, 1/2, 1/4, 1/8
- Applications: General Purpose
- detail: Bipolar Motor Driver Power MOSFET Logic 28-HTSSOP
