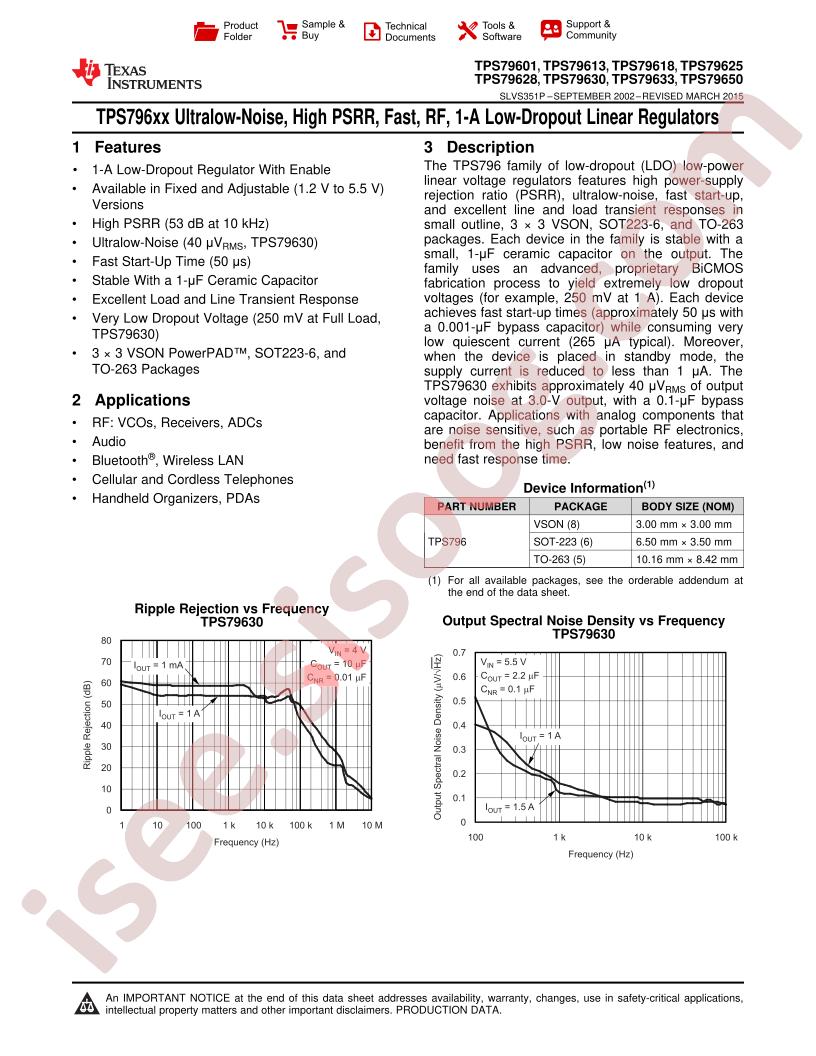

دیتاشیت TPS796xx Series
مشخصات دیتاشیت
| نام دیتاشیت |
TPS796xx Series
|
| حجم فایل |
1843.023
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
39
|
مشخصات فنی
-
Voltage - Output (Min/Fixed):
1.2V
-
Voltage Dropout (Max):
-
-
Package / Case:
8-VDFN Exposed Pad
-
Control Features:
Enable
-
Supplier Device Package:
8-SON (3x3)
-
Current - Output:
1A
-
Operating Temperature:
-40°C ~ 125°C
-
Voltage - Output (Max):
5.5V
-
Packaging:
Cut Tape (CT)
-
Mounting Type:
Surface Mount
-
Part Status:
Active
-
Manufacturer:
Texas Instruments
-
Output Configuration:
Positive
-
Series:
-
-
Base Part Number:
TPS796
-
Voltage - Input (Max):
5.5V
-
Output Type:
Adjustable
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
-
PSRR:
59dB ~ 42dB (100Hz ~ 100kHz)
-
Number of Regulators:
1
-
Current - Quiescent (Iq):
385µA
-
detail:
Linear Voltage Regulator IC 1 Output 1A 8-SON (3x3)
