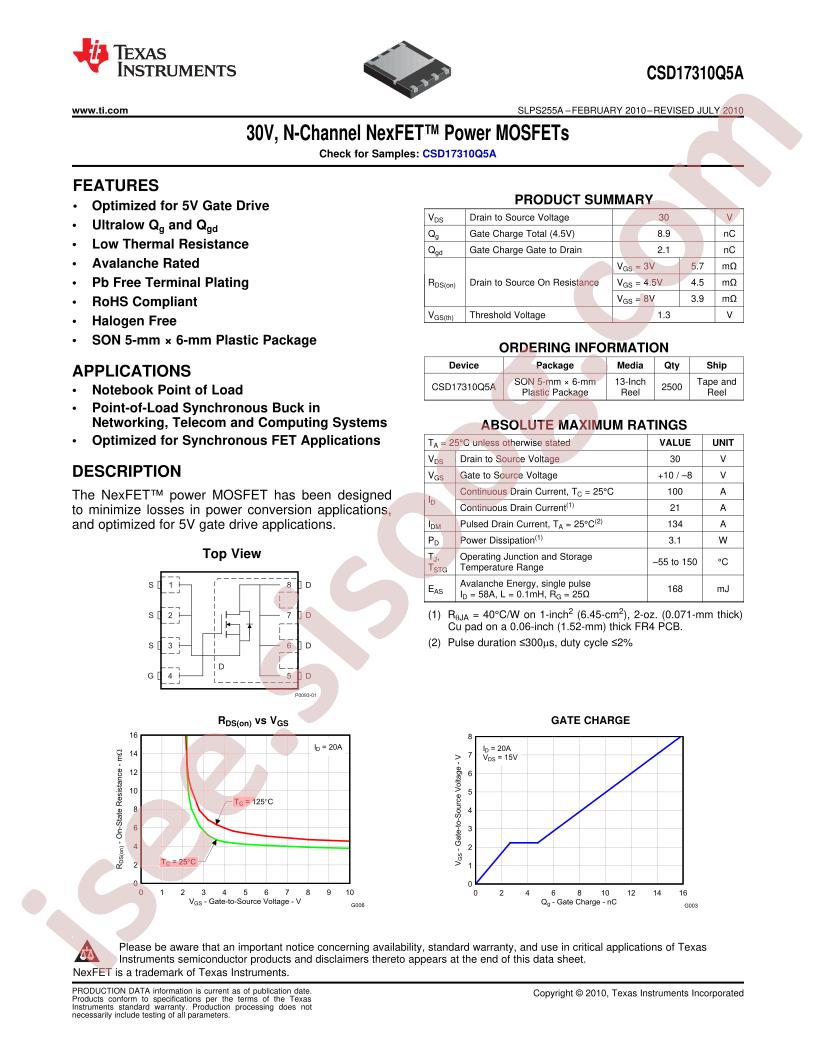

CSD17310Q5A دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CSD17310Q5A
|
|
حجم فایل
|
393.135
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
Power Dissipation (Max):
3.1W (Ta)
-
Drain to Source Voltage (Vdss):
30V
-
Rds On (Max) @ Id, Vgs:
5.1mOhm @ 20A, 8V
-
Vgs (Max):
+10V, -8V
-
FET Type:
N-Channel
-
Drive Voltage (Max Rds On, Min Rds On):
3V, 8V
-
Technology:
MOSFET (Metal Oxide)
-
Manufacturer:
Texas Instruments
-
Current - Continuous Drain (Id) @ 25°C:
21A (Ta), 100A (Tc)
-
FET Feature:
-
-
Input Capacitance (Ciss) (Max) @ Vds:
1560pF @ 15V
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Packaging:
Cut Tape (CT)
-
Package / Case:
8-PowerTDFN
-
Part Status:
Active
-
Series:
NexFET™
-
Vgs(th) (Max) @ Id:
1.8V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
11.6nC @ 4.5V
-
Supplier Device Package:
8-VSONP (5x6)
-
Mounting Type:
Surface Mount
-
Base Part Number:
CSD173
-
detail:
N-Channel 30V 21A (Ta), 100A (Tc) 3.1W (Ta) Surface Mount 8-VSONP (5x6)
