LM2623 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LM2623
|
|
حجم فایل
|
1454.796
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
22
|
مشخصات فنی
-
Package / Case:

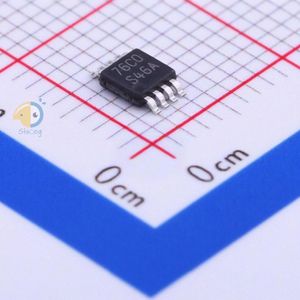

8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
-
Function:
Step-Up
-
Output Configuration:
Positive
-
Topology:
Boost
-
Base Part Number:
LM2623
-
Packaging:
Cut Tape (CT)
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Frequency - Switching:
300kHz ~ 2MHz
-
Supplier Device Package:
8-VSSOP
-
Part Status:
Obsolete
-
Current - Output:
2.2A (Switch)
-
Number of Outputs:
1
-
Series:
-
-
Manufacturer:
Texas Instruments
-
Voltage - Input (Max):
14V
-
Synchronous Rectifier:
No
-
Voltage - Output (Min/Fixed):
1.24V
-
Voltage - Input (Min):
0.8V
-
Mounting Type:
Surface Mount
-
Voltage - Output (Max):
14V
-
Output Type:
Adjustable
-
detail:
Boost Switching Regulator IC Positive Adjustable 1.24V 1 Output 2.2A (Switch) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
