دیتاشیت SI8422BB-D-ISR SOP-8 ایزولاتور دیجیتال
مشخصات دیتاشیت
نام دیتاشیت | SI8410/20/21, SI8422/23 |
---|---|
حجم فایل | 852.598 کیلوبایت |
نوع فایل | |
تعداد صفحات | 37 |
دانلود دیتاشیت SI8410/20/21, SI8422/23 |
SI8410/20/21, SI8422/23 Datasheet |
---|
مشخصات
- Manufacturer: Silicon Labs

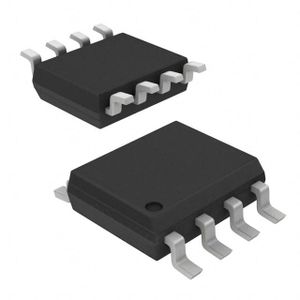

- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Rise / Fall Time (Typ): 2ns, 2ns
- Number of Channels: 2
- Operating Temperature: -40°C ~ 125°C
- Pulse Width Distortion (Max): 3ns
- Data Rate: 150Mbps
- Technology: Capacitive Coupling
- Supplier Device Package: 8-SOIC
- Series: -
- Voltage - Supply: 2.7V ~ 5.5V
- Isolated Power: No
- Inputs - Side 1/Side 2: 1/1
- Common Mode Transient Immunity (Min): 20kV/µs
- Channel Type: Unidirectional
- Type: General Purpose
- Propagation Delay tpLH / tpHL (Max): 11ns, 11ns
- Part Status: Active
- Voltage - Isolation: 2500Vrms
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- detail: General Purpose Digital Isolator 2500Vrms 2 Channel 150Mbps 20kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
