دیتاشیت TPS74512PQWDRVRQ1 DFN آی سی کاهنده ی ولتاژ
مشخصات دیتاشیت
| نام دیتاشیت | TPS745-Q1 |
|---|---|
| حجم فایل | 4396.912 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 45 |
دانلود دیتاشیت TPS745-Q1 |
TPS745-Q1 Datasheet |
|---|
مشخصات
- Operating Temperature: -40°C ~ 125°C (TJ)
- Base Part Number: TPS745
- Supplier Device Package: 6-WSON (2x2)
- Voltage - Output (Max): -
- Output Configuration: Positive
- Current - Quiescent (Iq): 36µA
- Output Type: Fixed
- PSRR: 57dB ~ 35dB (1kHz ~ 1MHz)
- Voltage Dropout (Max): 0.285V @ 500mA
- Number of Regulators: 1
- Mounting Type: Surface Mount

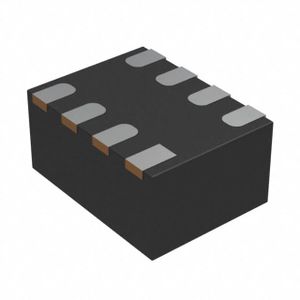

- Package / Case: 6-WDFN Exposed Pad
- Voltage - Output (Min/Fixed): 1.2V
- Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Series: Automotive, AEC-Q100
- Voltage - Input (Max): 6V
- Current - Output: 500mA
- Part Status: Active
- Control Features: Enable, Power Good
- Manufacturer: Texas Instruments
- detail: Linear Voltage Regulator IC 1 Output 500mA 6-WSON (2x2)
