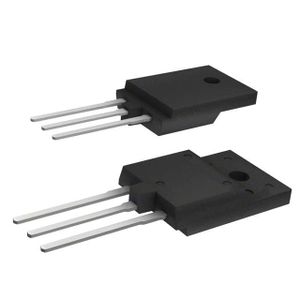

دیتاشیت STGW40V60DF TO-247 IGBT

STGW(T)40V60DF

مشخصات دیتاشیت

نام دیتاشیت STGW(T)40V60DF
حجم فایل 841.299 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

دانلود دیتاشیت STGW(T)40V60DF

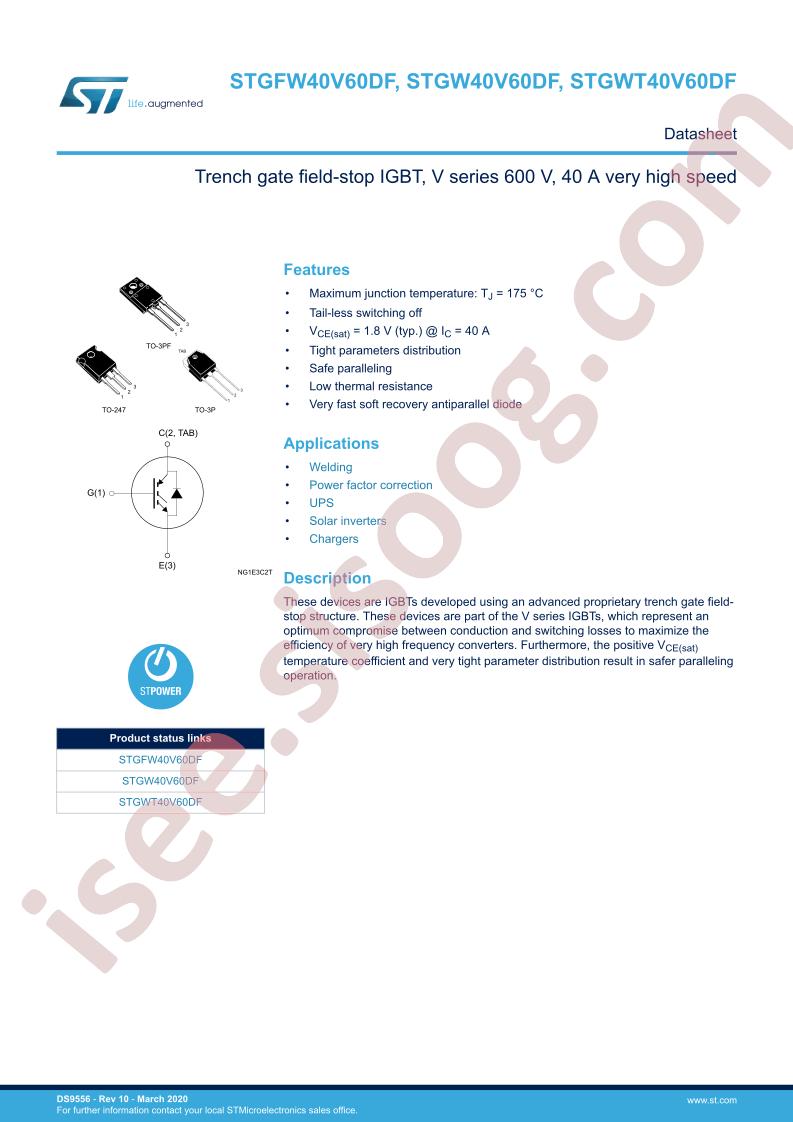

STGW(T)40V60DF Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • IGBT Type: Trench Field Stop
  • Voltage - Collector Emitter Breakdown (Max): 600V
  • Current - Collector (Ic) (Max): 80A
  • Current - Collector Pulsed (Icm): 160A
  • Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 40A
  • Power - Max: 283W
  • Switching Energy: 456µJ (on), 411µJ (off)
  • Input Type: Standard
  • Gate Charge: 226nC
  • Td (on/off) @ 25°C: 52ns/208ns
  • Test Condition: 400V, 40A, 10Ohm, 15V
  • Reverse Recovery Time (trr): 41ns
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-247-3
  • Supplier Device Package: TO-247
  • Base Part Number: STGW40
  • detail: IGBT Trench Field Stop 600V 80A 283W Through Hole TO-247
