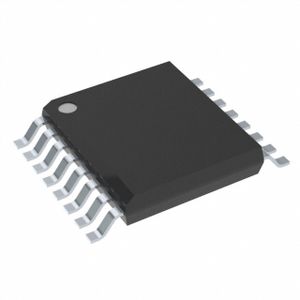

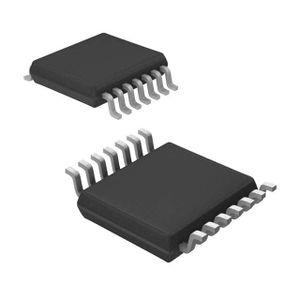

دیتاشیت ISO7841FDWWR 10.30mm x 14.0mm TSSOP ایزولاتور دیجیتال

مشخصات دیتاشیت

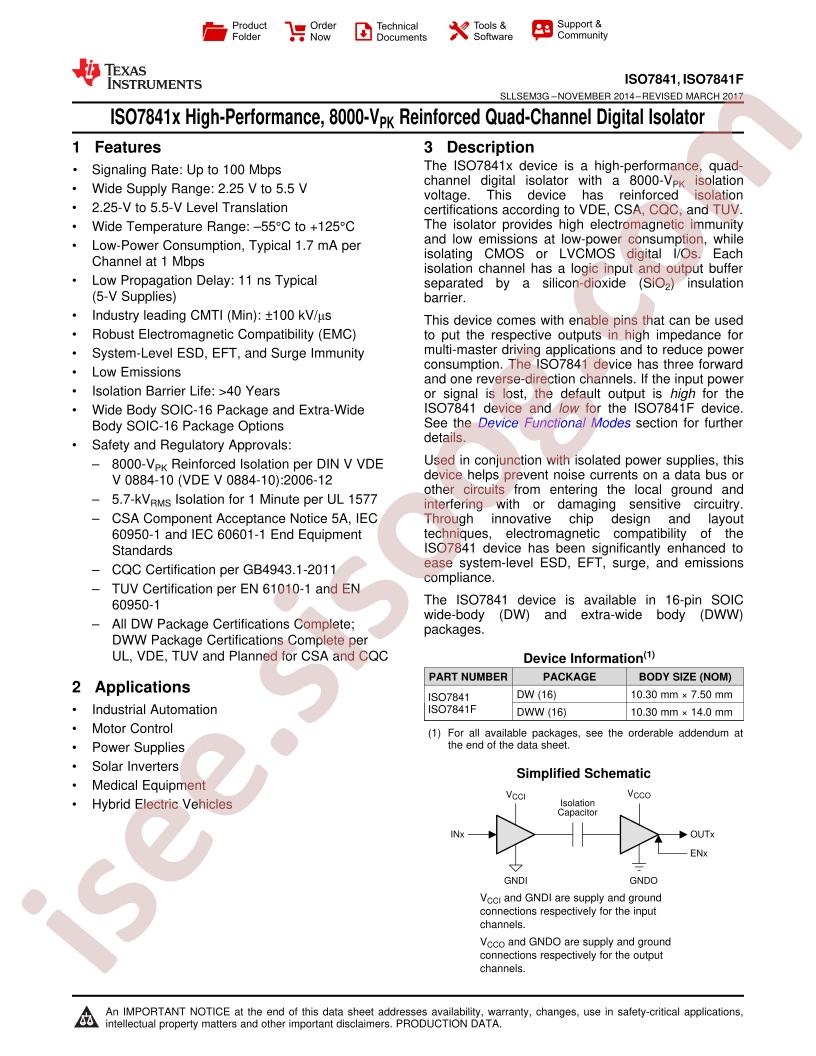

دانلود دیتاشیت ISO7841(F) Datasheet	ISO7841(F) Datasheet Datasheet

Type: General Purpose
Pulse Width Distortion (Max): 4.1ns
Rise / Fall Time (Typ): 1.7ns, 1.9ns
Base Part Number: ISO784
Voltage - Isolation: 5700Vrms
Operating Temperature: -55°C ~ 125°C
Package / Case: 16-SOIC (0.551", 14.00mm Width)
Voltage - Supply: 2.25V ~ 5.5V
Supplier Device Package: 16-SOIC
Common Mode Transient Immunity (Min): 100kV/µs
Series: -
Technology: Capacitive Coupling
Channel Type: Unidirectional
Propagation Delay tpLH / tpHL (Max): 16ns, 16ns
Part Status: Active
Mounting Type: Surface Mount
Number of Channels: 4
Isolated Power: No
Manufacturer: Texas Instruments
Inputs - Side 1/Side 2: 3/1
Packaging: Tape & Reel (TR)
Data Rate: 100Mbps
detail: General Purpose Digital Isolator 5700Vrms 4 Channel 100Mbps 100kV/µs CMTI 16-SOIC (0.551", 14.00mm Width)
