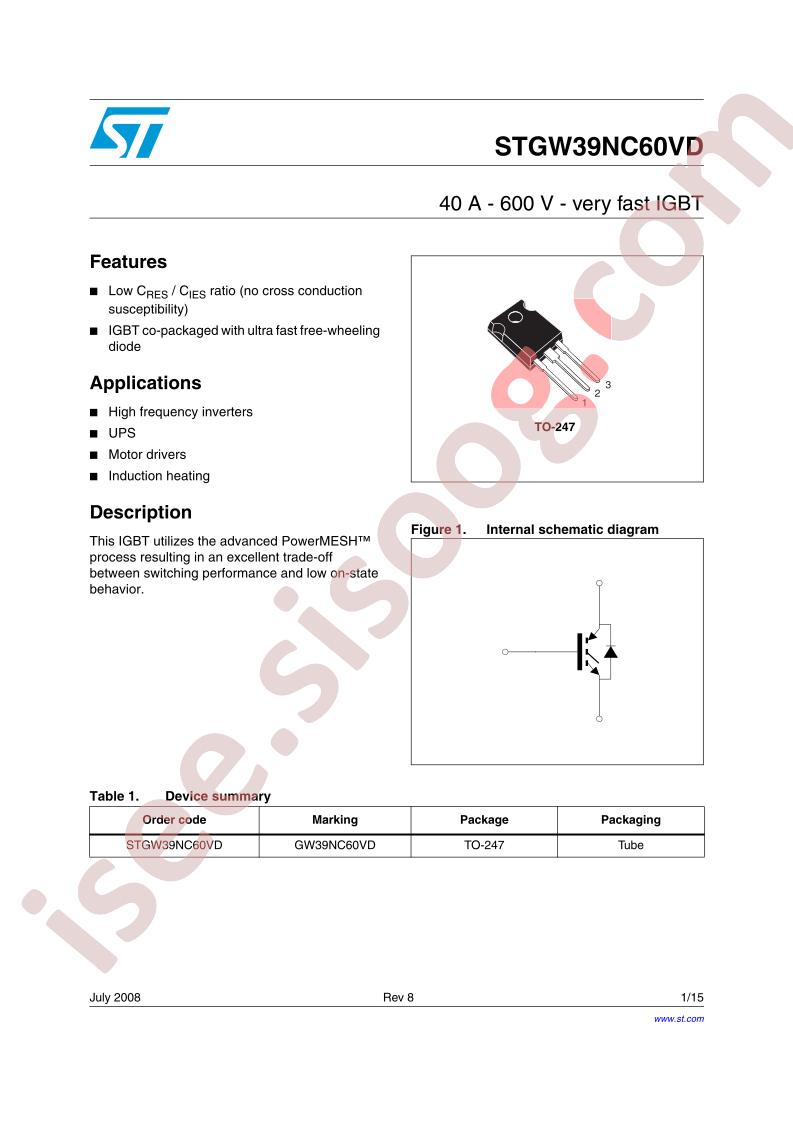

STGW39NC60VD دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STGW39NC60VD
|
|
حجم فایل
|
430.708
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
PowerMESH™
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
-
-
Voltage - Collector Emitter Breakdown (Max):
600V
-
Current - Collector (Ic) (Max):
80A
-
Current - Collector Pulsed (Icm):
220A
-
Vce(on) (Max) @ Vge, Ic:
2.4V @ 15V, 30A
-
Power - Max:
250W
-
Switching Energy:
333µJ (on), 537µJ (off)
-
Input Type:
Standard
-
Gate Charge:
126nC
-
Td (on/off) @ 25°C:
33ns/178ns
-
Test Condition:
390V, 30A, 10Ohm, 15V
-
Reverse Recovery Time (trr):
45ns
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247-3
-
Base Part Number:
STGW39
-
detail:

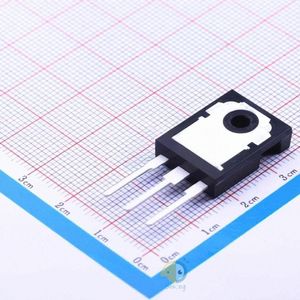

IGBT 600V 80A 250W Through Hole TO-247-3
